Bachmann PIX HOLDER DOUBLE power outlet for furniture with 1x CEE7/3, 1x CM, 0,2m GST18 (BM0020105)
Rahmen
Keystone
Your set selection:
Highlights
- 1x CEE7/3 and 1x custom module
- 0.2 m GST18 installation connector
- Individually configurable module
- Metal bracket 926.502 required separately
- Dimensions: 148 x 59 x 78 mm

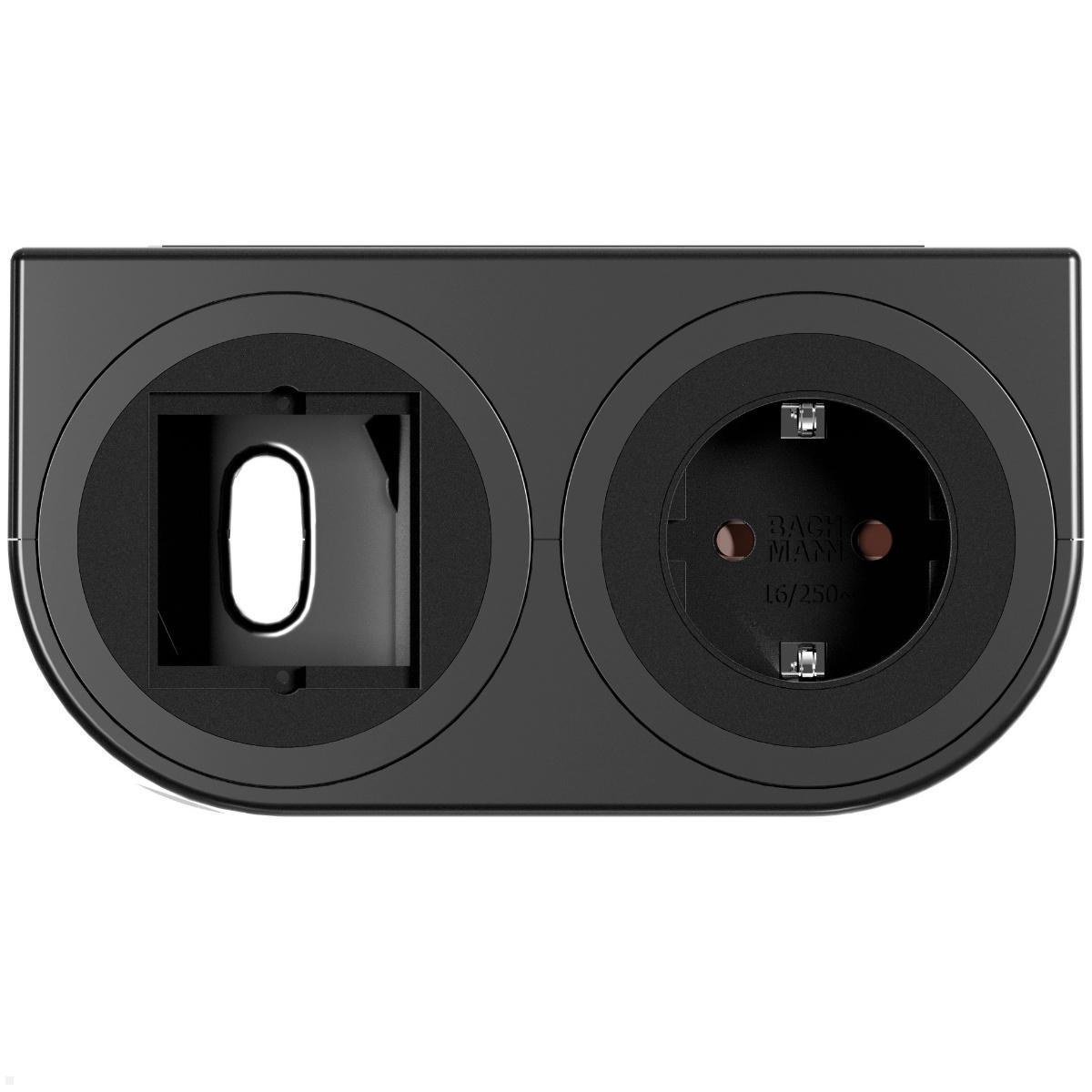

2-socket unit CEE7/3 with Custom Module and GST18

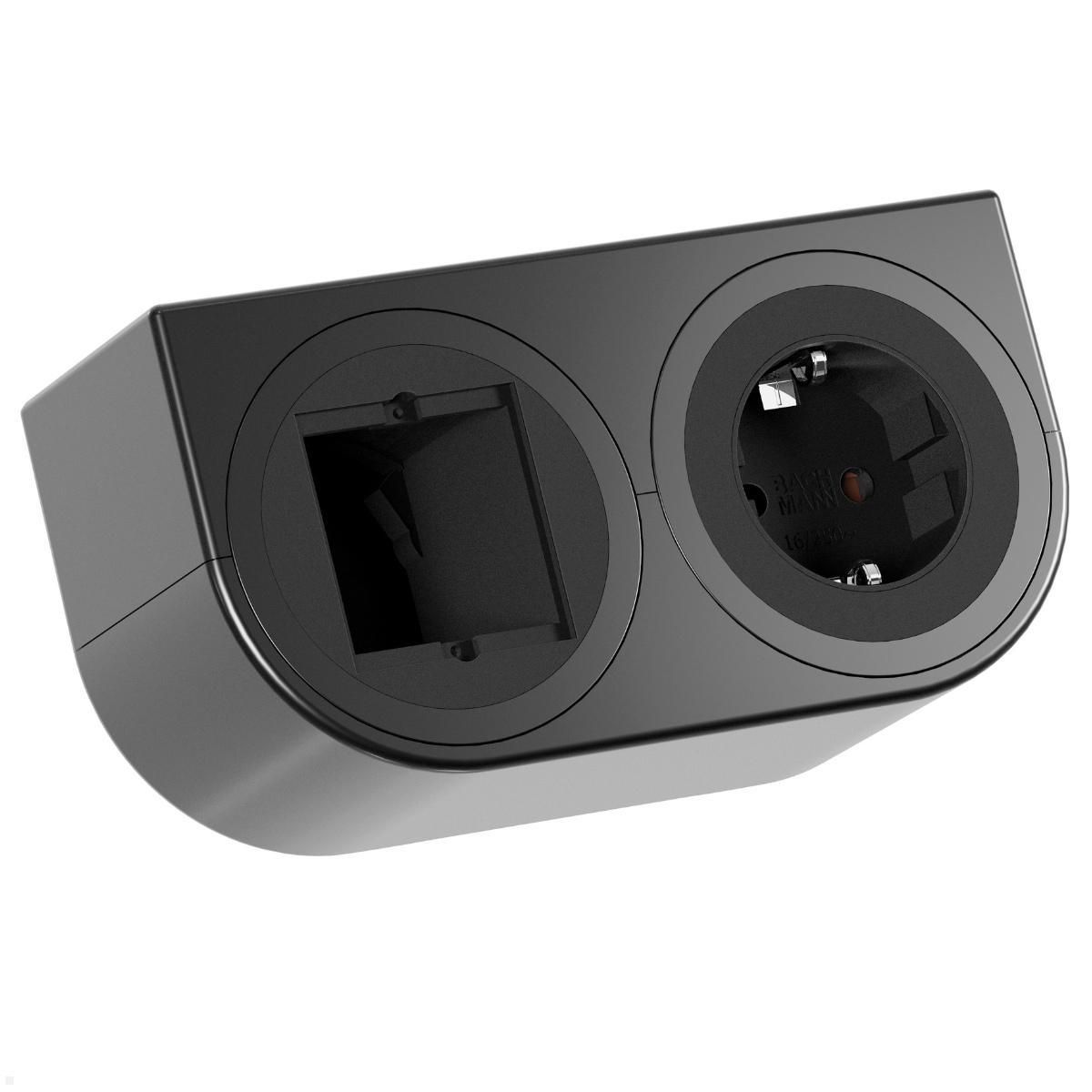

The Bachmann PIX HOLDER DOUBLE furniture socket with 1x CEE7/3, 1x CM, 0.2 m GST18 (BM0020105) combines a CEE7/3 earthed socket with enhanced touch protection and a custom module in a compact 2-socket plastic housing. The custom module enables individual configuration with additional connection types.

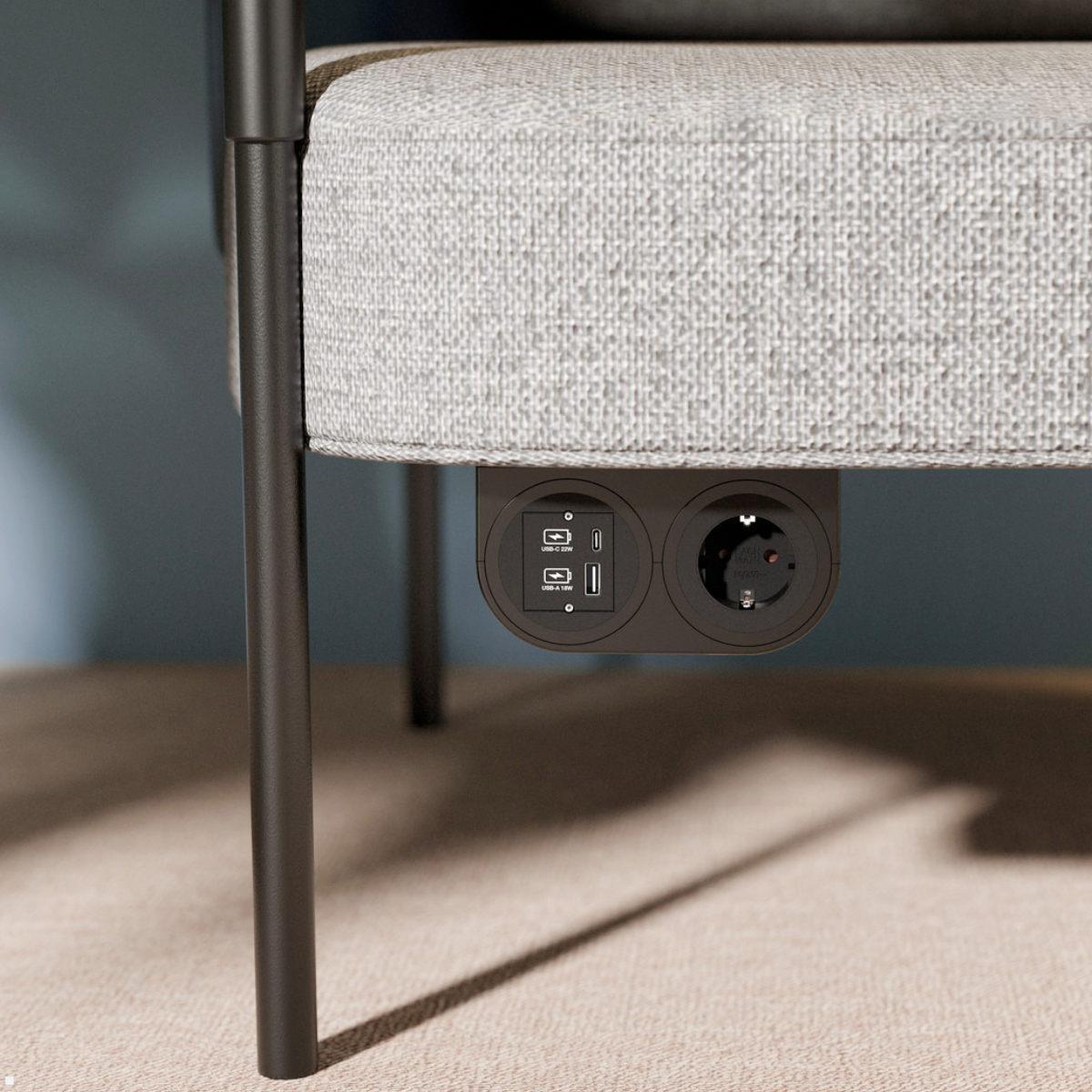

The power input is via a 0.2 m GST18 installation connector for professional wiring inside the furniture. For attachment to the underside of the furniture the separately available PIX HOLDER metal bracket 2-socket (926.502) is required. The furniture socket is ideal for lounge areas, co-working spaces, hotels and residential use.
Technical Details Bachmann PIX HOLDER DOUBLE CEE7/3 Module
- Connection: 1x CEE7/3 earthed socket + 1x custom module
- Enhanced touch protection
- Power input: 0.2 m with GST18 installation connector
- Housing material: plastic
- Color: black with trim ring similar to RAL9005
- Mounting requires the PIX HOLDER metal bracket 2-socket 926.502 (sold separately)
- Dimensions (L×W×H): 148 x 59 x 78 mm
| Product sheet: |  [pdf] |
|---|---|

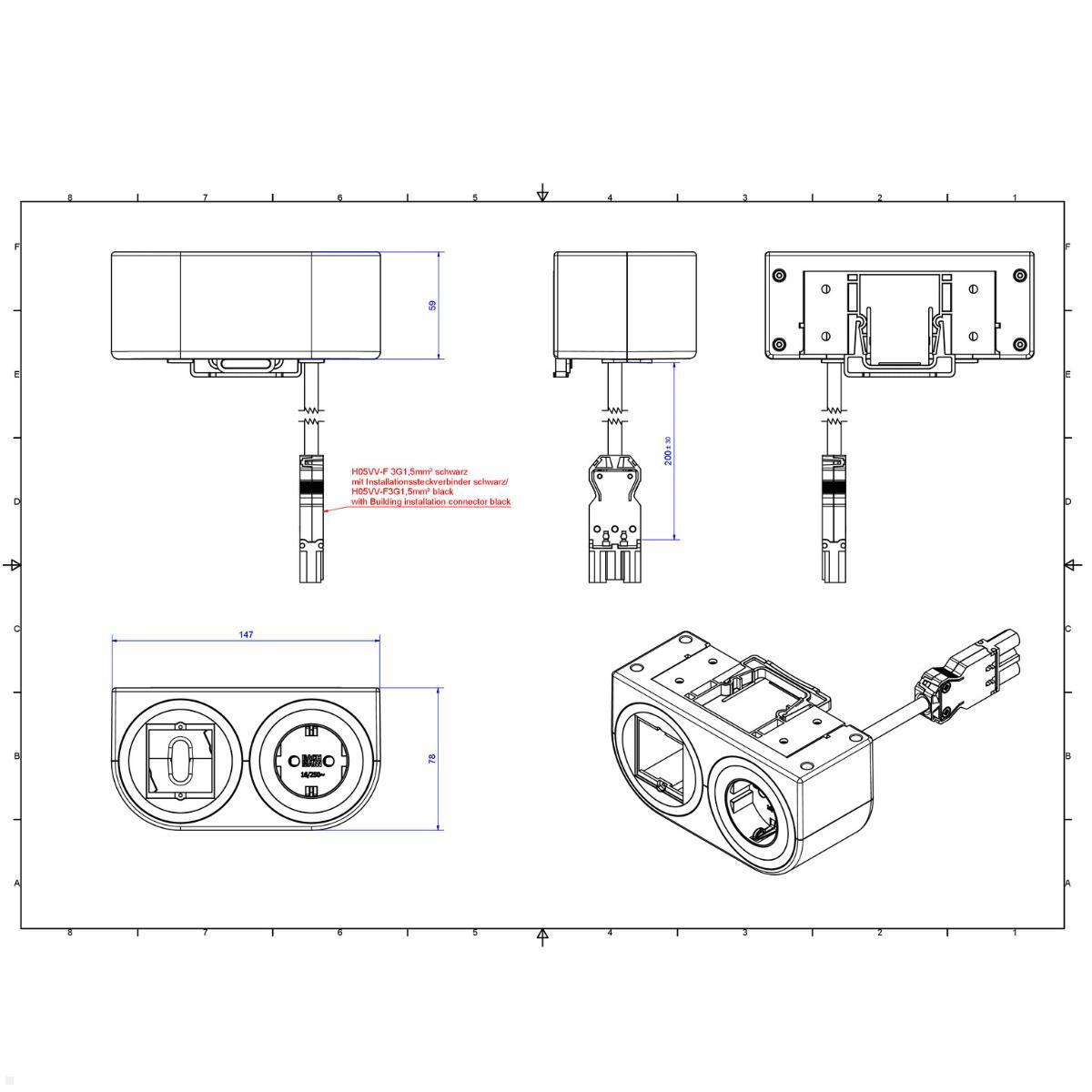

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Accessories: | 51102585 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 Outlet |
| color: | Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann PIX HOLDER DOUBLE socket unit?
A 2-gang CEE7/3 socket unit with a Custom Module and GST18 in a compact plastic housing; power input via a 0.2 m GST18 installation connector for wiring inside the furniture.
-
Which connectors does it include?
Connections: 1x protective contact socket CEE7/3 + 1x Custom Module; increased touch protection.
-
How is it wired?
Power input via a 0.2 m GST18 installation connector for professional wiring inside the furniture.
-
What mounting option is available?
To mount on the underside of furniture, the PIX HOLDER 2-gang metal bracket (926.502) is required and sold separately.
-

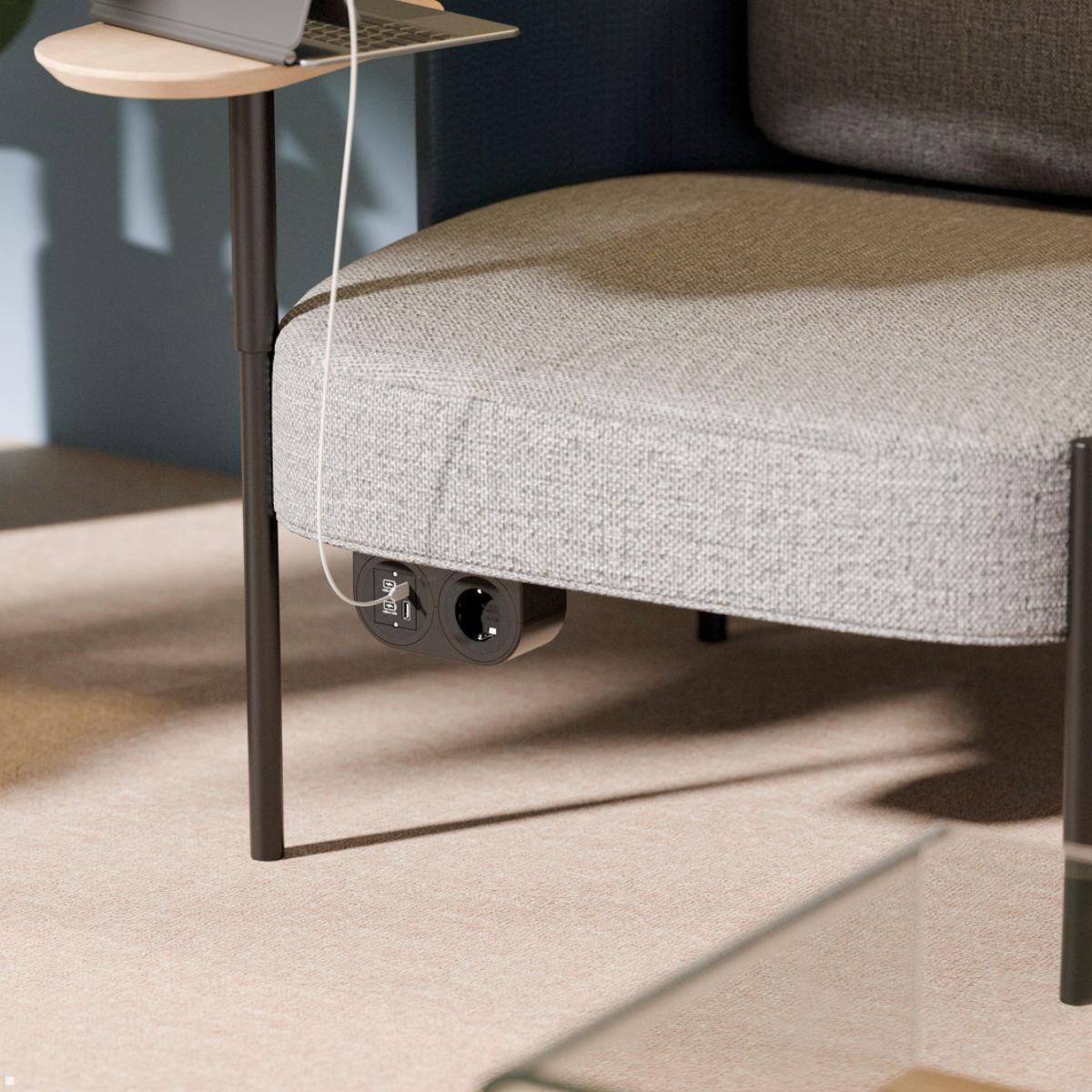

What spaces is it suitable for?
Ideal for lounge areas, co-working spaces, hotels and living areas.
-
What are the dimensions?
Dimensions (L×W×H): 148 x 59 x 78 mm.
-

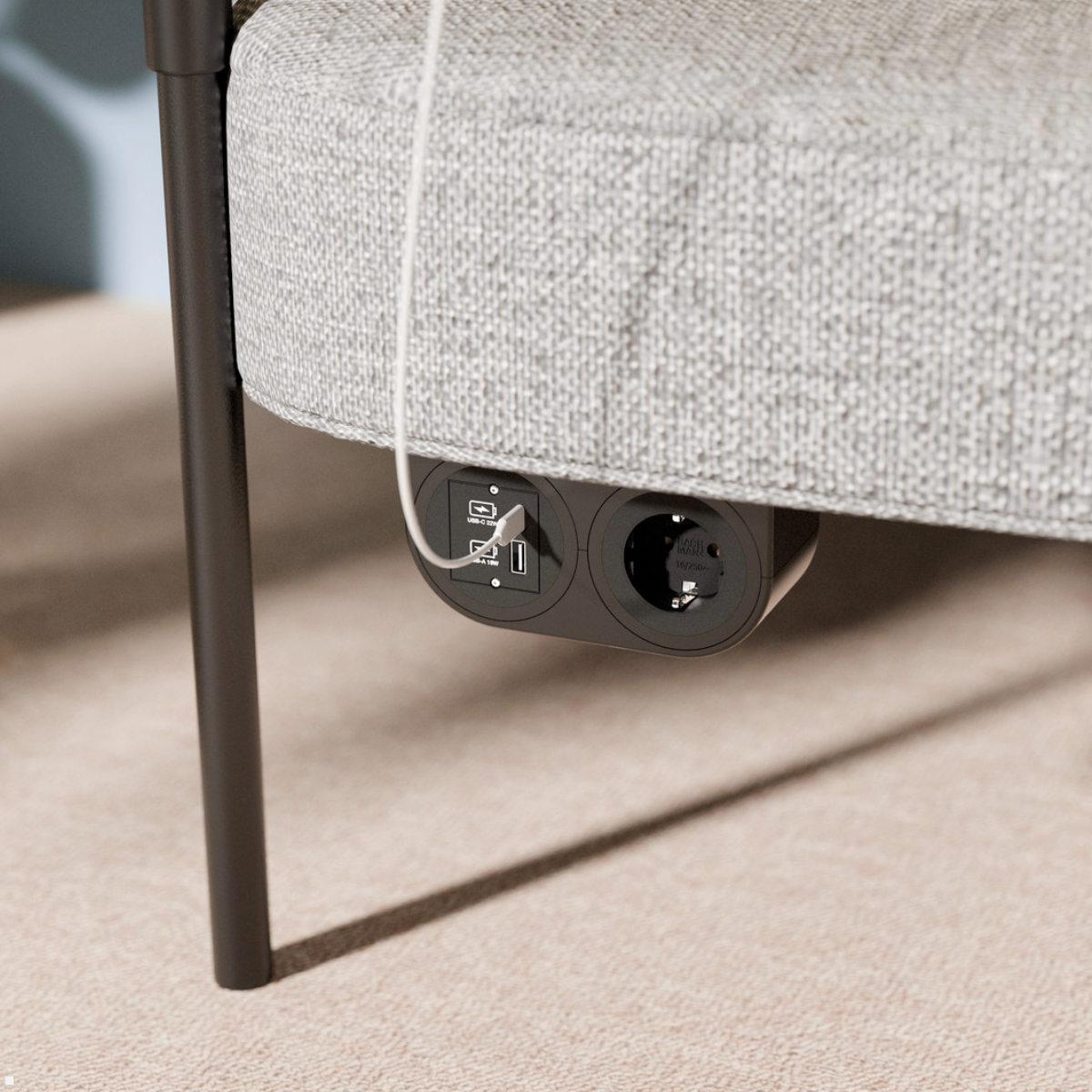

What does the housing look like?
Housing is plastic; color is black with a ring/bezel similar to RAL9005.
What is the PIX HOLDER DOUBLE with CEE7/3 and Custom Module suitable for?
The Bachmann PIX HOLDER DOUBLE socket unit BM0020105 combines a CEE7/3 earthed socket with a flexibly configurable custom module in a 2-gang housing. The CEE7/3 module 0.2 m furniture socket - Bachmann PIX HOLDER is therefore the suitable choice for a variety of application scenarios. The 0.2 m GST18 installation connector enables professional wiring inside the furniture. The separately available metal bracket 2-gang (926.502) is required for mounting.
How does this variant differ from the BM0020102?
Both socket units offer the same combination of CEE7/3 socket and custom module. The difference lies in the power input. The BM0020102 features a 2.0 m cable with a mains plug for direct connection to a wall outlet. The BM0020105, on the other hand, uses a 0.2 m GST18 installation connector for connection to existing electrical infrastructure in the furniture. This variant is aimed at furniture manufacturers and professional installers.
For which application areas is the GST18 variant particularly suitable?
The GST18 variant is primarily used where furniture is supplied via floor boxes, cable ducts or other permanently installed power sources. In hotels and airport lounges seating furniture is often electrified via such professional installation systems. Also in conference rooms and co-working spaces the GST18 connection provides a neat and safe wiring solution. The compact dimensions of 148 x 59 x 78 mm and the black plastic housing with a trim ring similar to RAL9005 ensure a discreet integration into any furniture design.
