Bachmann Loop Square cable outlet 120x120mm, silver (930.310)
The Bachmann LOOP SQUARE cable outlet / frame in silver grey (930.310) can quickly and easily be inserted into your table cut-out in the mounting frame. The cable bushing provides access to the standard cable trays under the desktop in offices and conference rooms.
Installation frame for cable outlet
Bachmann LOOP SQUARE installation frame (930.310) creates more flexibility on the desktop with generating free and effortless access to sockets or USB / HDMI connections under the working desk. When closed, the furniture surface and the LOOP SQUARE cable outlet forms a flat surface / level.
Cable routing through integrated brush insert
The cable outlet with a black brush insert has an elegant, silver-anodized design and can be quickly and easily inserted into the table cut-out. No accessories are required for this. The cable outlet provides access to the multiple socket, which is located in the existing, commercially available cable tray under the table top. Cables can be routed through the opening in an uncomplicated manner. This also happens with the black brush insert when it is closed. The cables are not clamped. The angular cable duct can be combined with BACHMANN STEP and UNIVERSAL, but also with any other commercially available socket strip. You only have to pay attention to the dimensions of the multiple socket strip and the cable outlet. The multiple plug should not be larger than the cable outlet. The perfect solution for cable management in offices, kitchens, conference and meeting rooms.
Key features Bachmann LOOP Square desktop cable bushing
- Finish: silver grey
- Material: aluminium
- Dimensions (WxD): 120 x 120 mm
- Installation depth: 25 mm
- Table cut-out dimensions: 113 x 113 mm
- easy access to a 2-way socket
- Closes when cables are plugged in
- Brush strip in black
- Straight hinged lid with black brush seal
- Scope of delivery: 1 x cable entry, 2 x screws and 1 x Allen key
Possible combinations for Bachmann LOOP SQUARE installation frames (not included in delivery)
- Bachmann STEP power socket strips
- Bachmann UNIVERSAL power socket strips
- Bachmann CONI COVER cable tray
| Product sheet: |  [pdf, 200 kb] |
|---|---|

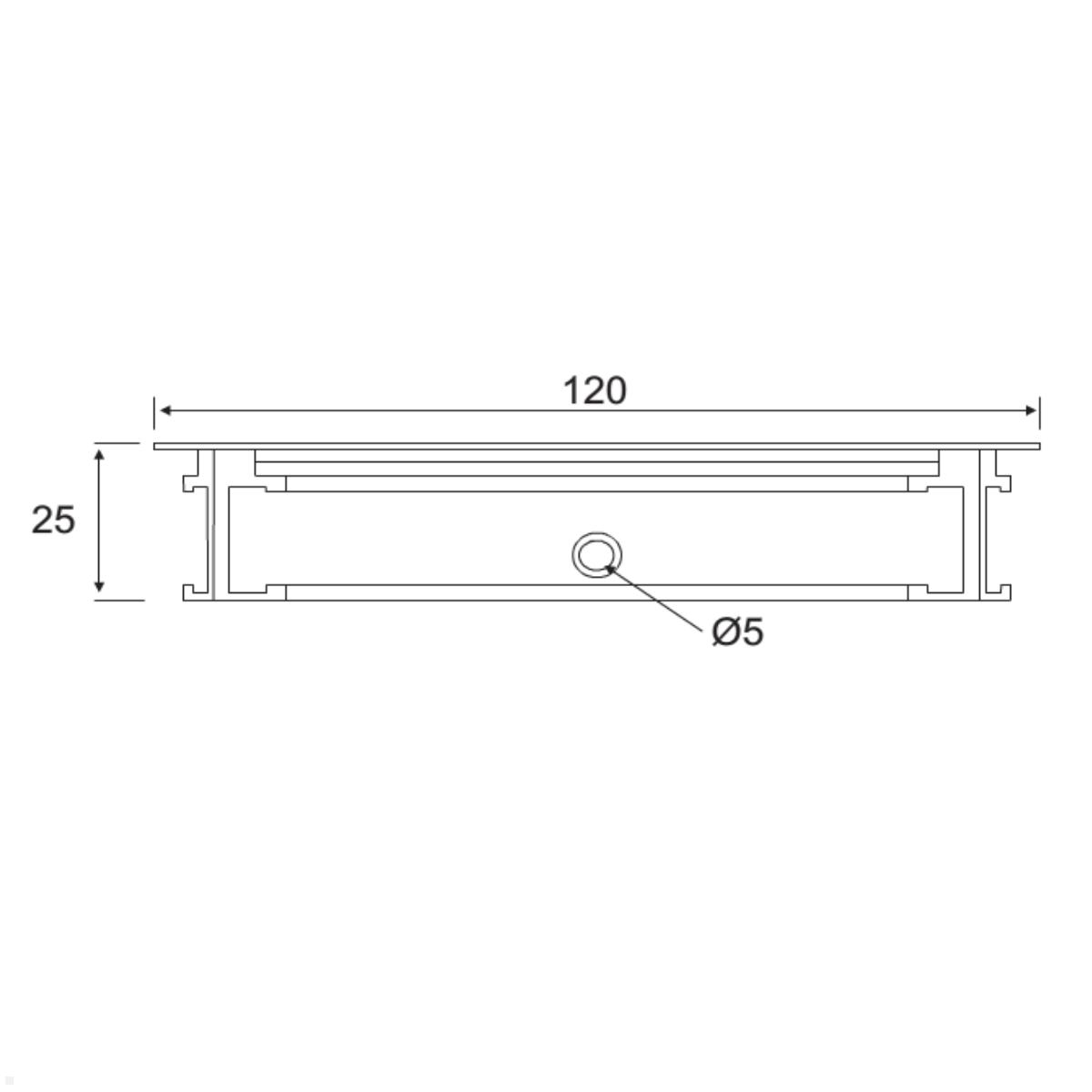

| Technical drawing: | [pdf, 65 kb] |
| RoHS / REACH: | [pdf, 110 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver/Anthracite |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
