Bachmann LOOP IN CHARGE UTE socket outlet USB A/C angled plug, black (938.202)

USB A/C socket UTE with cable guide

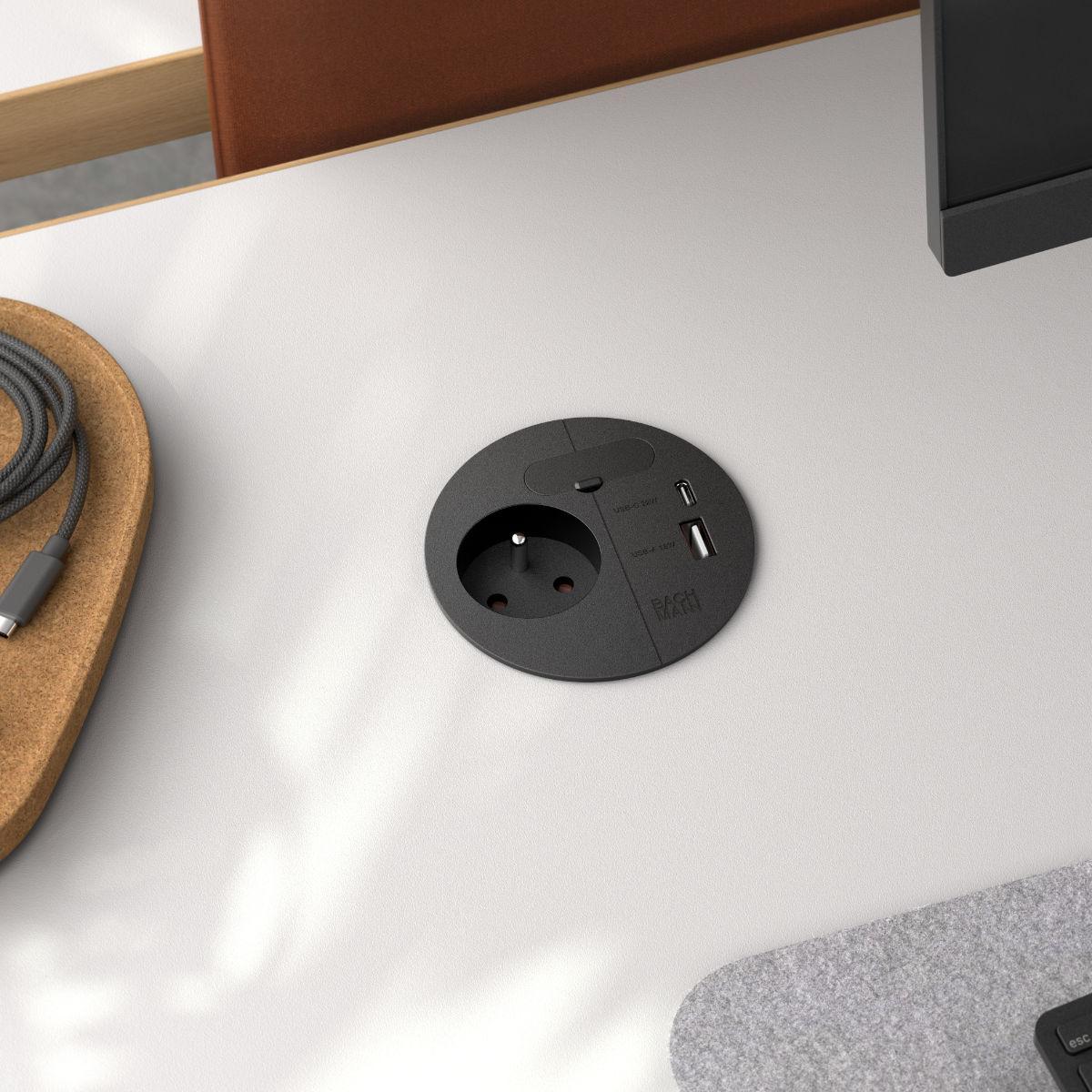

With Loop in Charge, Bachmann presents an elegant desktop connection panel for all-round use in the office: the built-in socket outlet in accordance with the French standard (UTE) type E offers a power supply and charging function in one. The USB A/C charger with Power Delivery makes it possible to charge smartphones and other smaller devices while working at the desk. Built into the desk surface with a concealed mounting screw to save space, the black furniture socket blends seamlessly into any environment. Thanks to the built-in cable outlet with rubber cover, Loop in Charge also functions as a practical cable management system on the table. The mains connection is made via an angled plug. To install the USB A/C socket UTE with cable guide, simply drill an 80 mm hole in the table top.

Key features Bachmann LOOP IN CHARGE USB socket outlet French, black (938.202)

• 1x French UTE socket outlet (type E), 1x USB-A, 1x USB-C
• USB-C: 22 W
• USB-A: 18 W
• Charging standard: USB 3.1 Power Delivery (PD)
• Integrated cable outlet (23 x 12 mm) with rubber cover

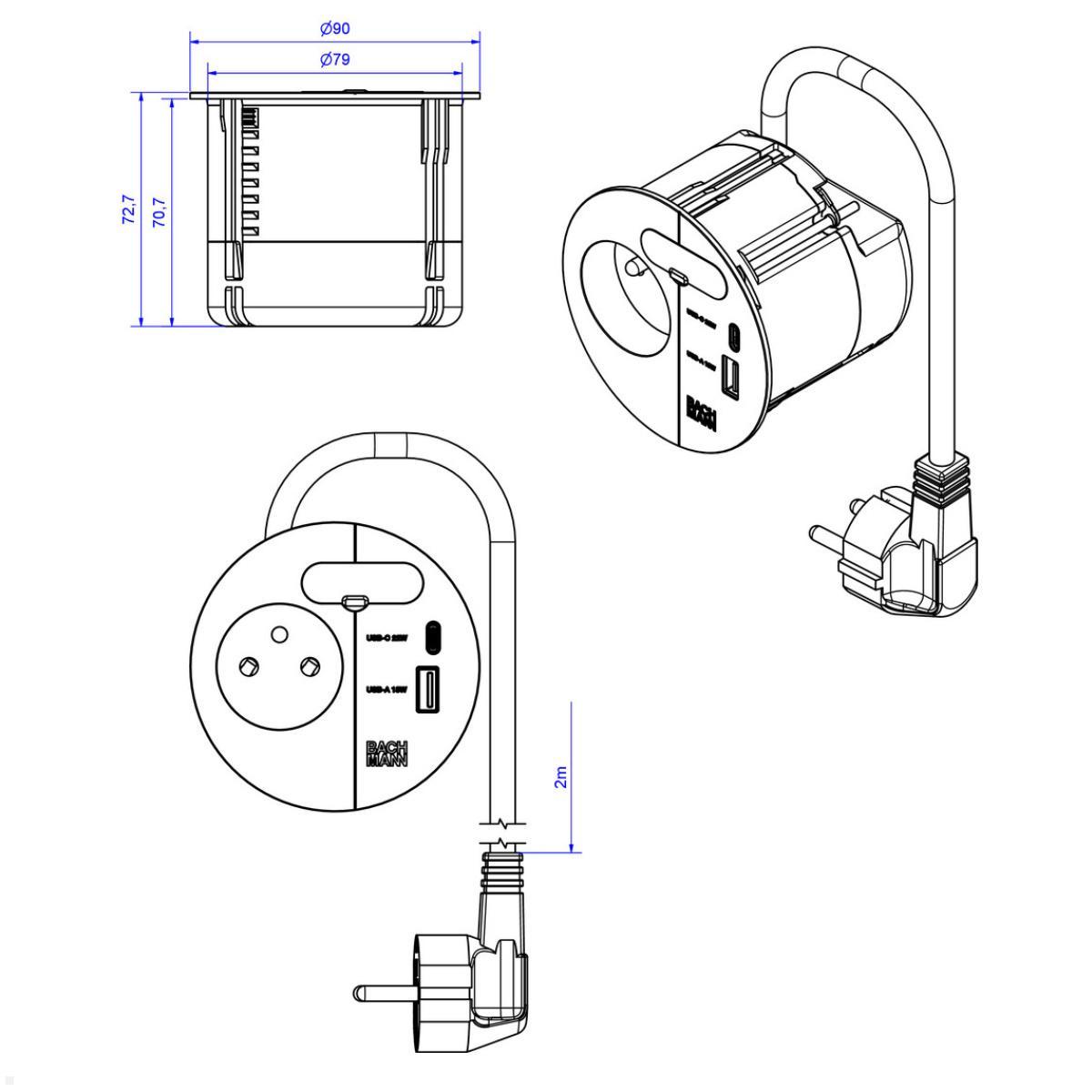

• Drill hole: ⌀ 80 mm
• Table thickness: 10 - 40 mm
• Dimensions (⌀ x H): 90 x 72.7 mm
• Supply cable: H05VV-F | 3G1.5 mm², length: 2.0 m
• Plug type: Angled plug
• Rated current / rated voltage: 16 A / 250 V
• Frequency: 50 Hz
• Protection class: IP20
• Including fixing screw
• Color: Black

Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
