Bachmann LIFT 2x sockets 2x CAT6 2x USB silver (904.011)

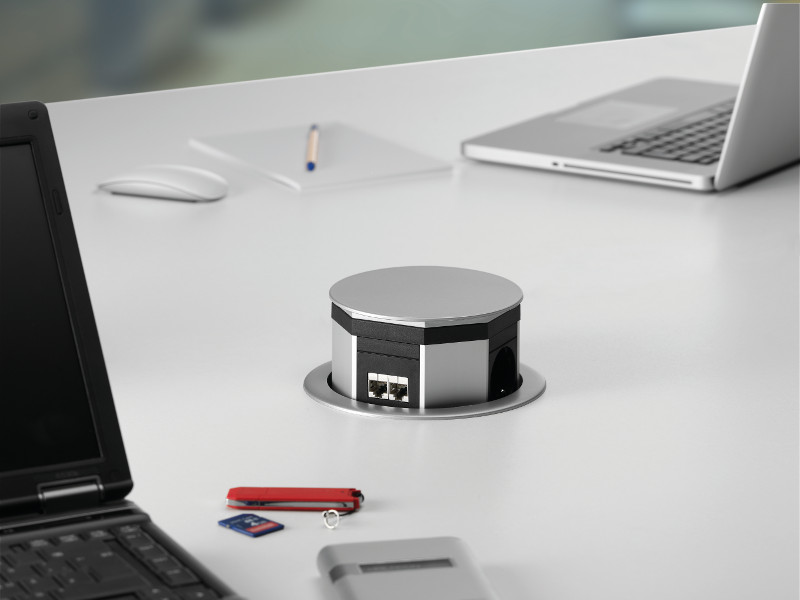

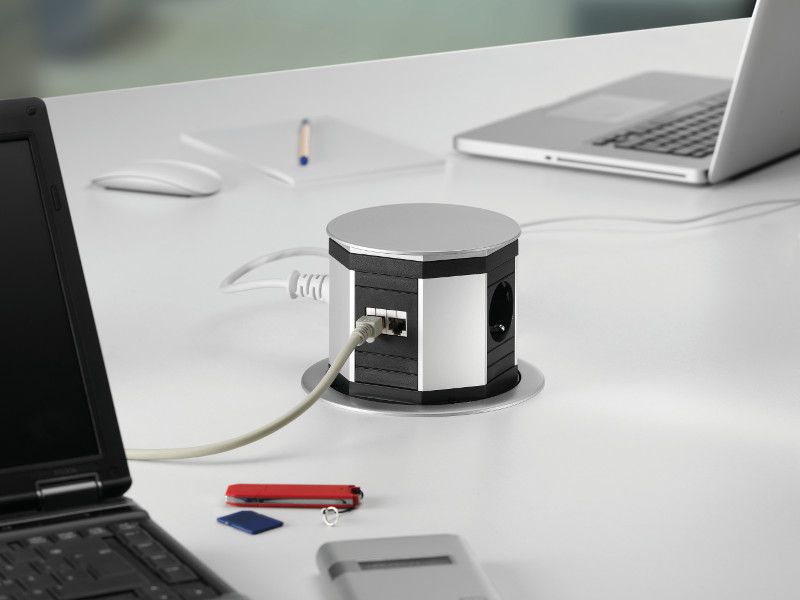

Simply touch the Bachmann LIFT 2x Power socket outlets 2x CAT6 silver 2x USB silver (904.011) to raise out of the desk or table ready for docking on all four sides.
Bachmann LIFT 2x Power socket outlets 2x CAT6 silver 2x USB silver 904.011

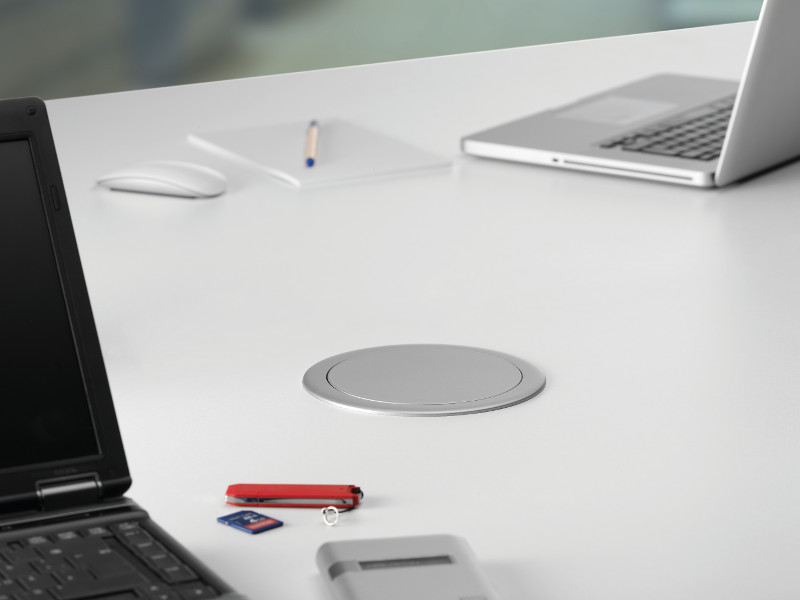

Bachmann LIFT is the totally practical combination of sophisticated looks and high-precision mechanical design. The unit is recessed neatly in the top of the desk or table when not in use. Simply touch to raise out of the desk or table ready for docking on all four sides. Once you have finished using the Bachmann LIFT unit, simply push it back into its initial recessed position by hand. Bachmann LIFT can be supplied in a variety of power and data connection configurations. This highly compact unit needs a drill hole only 140 mm in diameter for installation. Built-in depth both open and closed is just 195 mm. By setting cutting-edge technology in motion, Bachmann LIFT makes power and data supply a truly enjoyable experience.
Key features Bachmann LIFT 2x Power socket outlets 2x CAT6 silver 2x USB silver 904-011
- Enclosure colour silver
- max. 16A / 230V
- 2x socket outlets with earthing contact, black, set at 35°
- power input: 3.0 m cable and plug
- 2x CAT6 with 3.0 m data cable and RJ45 plug
- 2x USB A socket with 3.0 m cable and plug

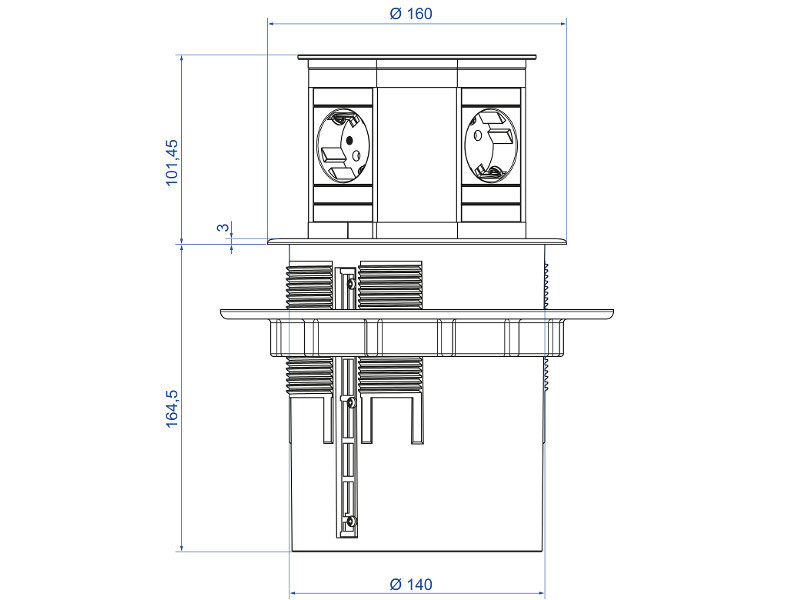

- Built-in depth 195mm

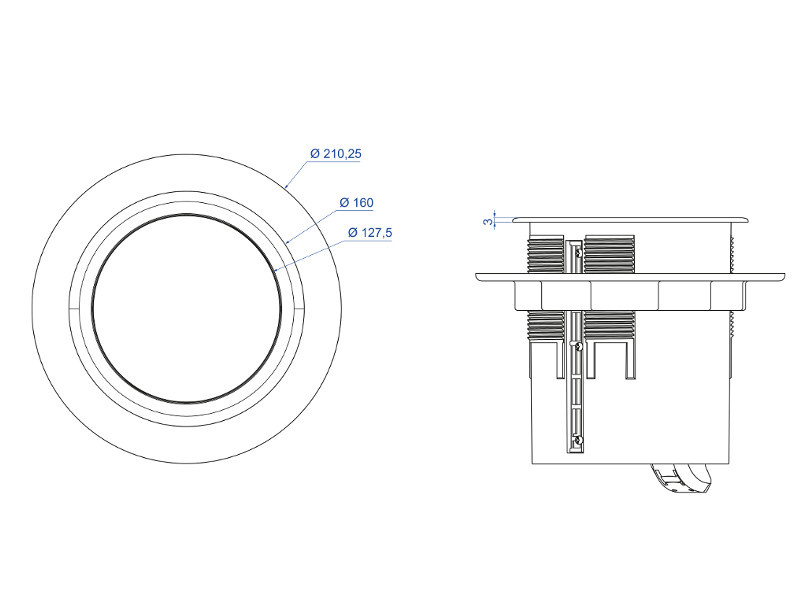

- diameter for installation 140mm
| Product sheet: |  [pdf, 108 kb] |
|---|---|
| Technical drawing: | [pdf, 186 kb] |
| RoHS / REACH: | [pdf, 110 kb] |
| Installation manual: | [pdf, 193 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silber |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
