EOL - Bachmann LIFT 2x sockets 2x CAT6 1x USB double charger (904.0001)
The multi-socket outlet Bachmann LIFT 904.0001 with 2x socket 2x CAT6 and 1x USB double charger in black turns out to light pressure automatically and is ready on four sides for docking.

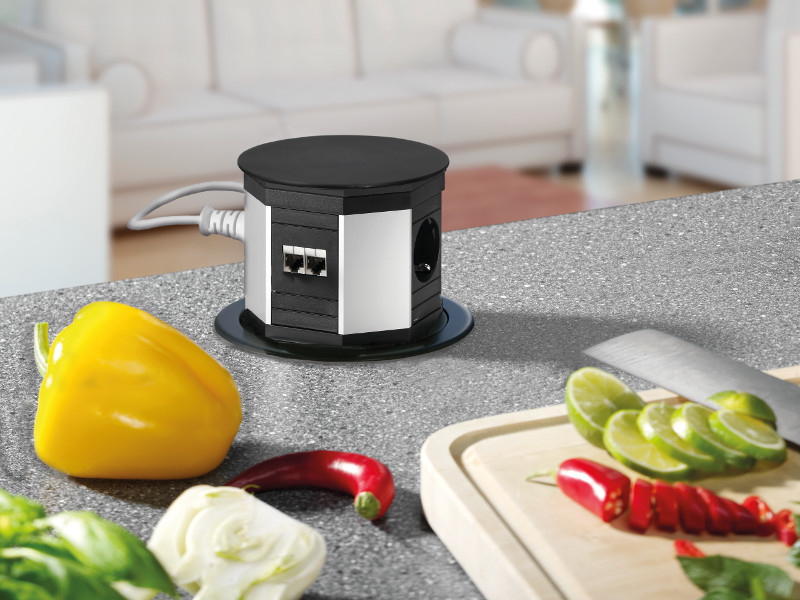

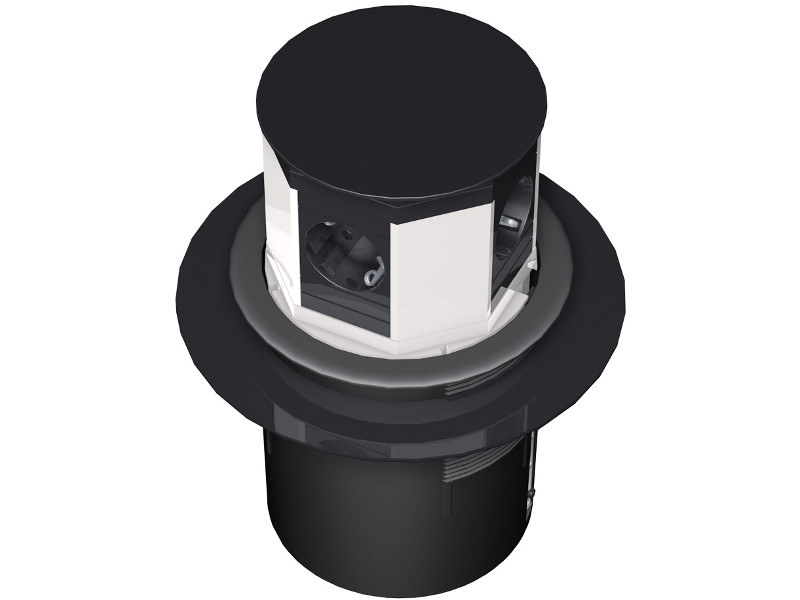

Bachmann LIFT is the totally practical combination of sophisticated looks and high-precision mechanical design. The unit is recessed neatly in the top of the desk or table when not in use. Simply touch to raise out of the desk or table ready for docking on all four sides.
Bachmann LIFT 2x power socket 2x CAT6 1x USB double charger 904.0001

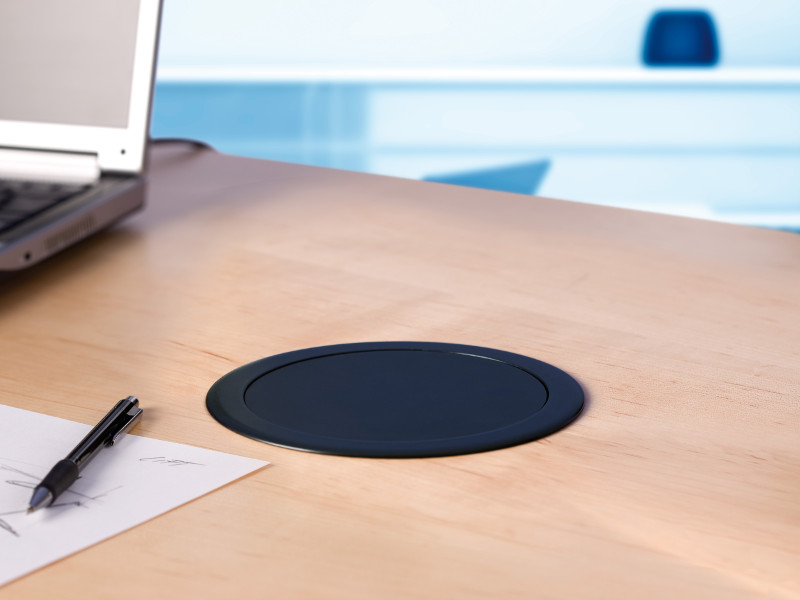

Once you have finished using the Bachmann built-in power socket unit, simply push it back into its initial recessed position by hand. Bachmann LIFT can be supplied in a variety of power and data connection configurations. This highly compact unit needs a drill hole only 140 mm in diameter for installation. Built-in depth both open and closed is just 195 mm. By setting cutting-edge technology in motion, Bachmann LIFT makes power and data supply a truly enjoyable experience.
Key features Bachmann LIFT built-in power socket 904.0001
- Enclosure colour black
- 2x socket outlet with earthing contact, shuttered, black, set at 35°
- 2x CAT6 RJ45 socket with 3.0 m data cable and RJ45 plug
- 1x USB double charger (5,2V/2,15A)
- Power input: 3.0 m cable and plug

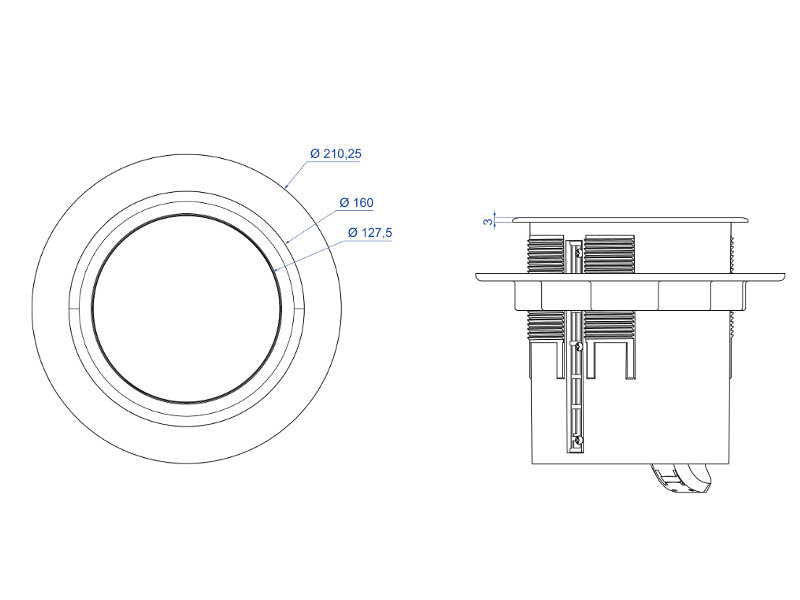

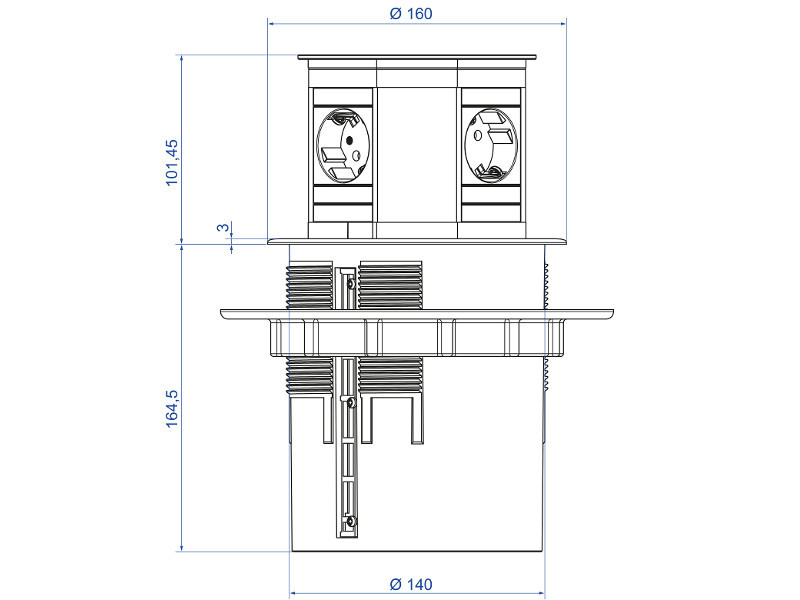

- Drill hole 140 mm in diameter
- Lift height 195 mm
- Simply touch to raise
| Product sheet: |  [pdf, 108 kb] |
|---|---|
| Technical drawing: | [pdf, 186 kb] |
| RoHS / REACH: | [pdf, 110 kb] |
| Installation manual: | [pdf, 193 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
