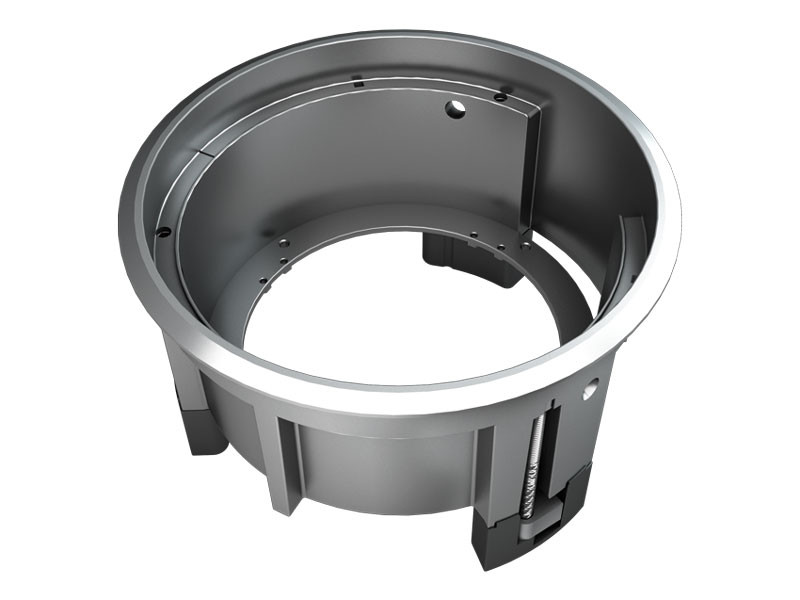

Bachmann LanLight modular installation base unit (924.1016)
The Bachmann LanLight Modular Installation Box 924.1016 is a basic unit for all LanLight components for mounting in double and hollow ground soils.
Bachmann LanLight modular installation base unit (924.1016)

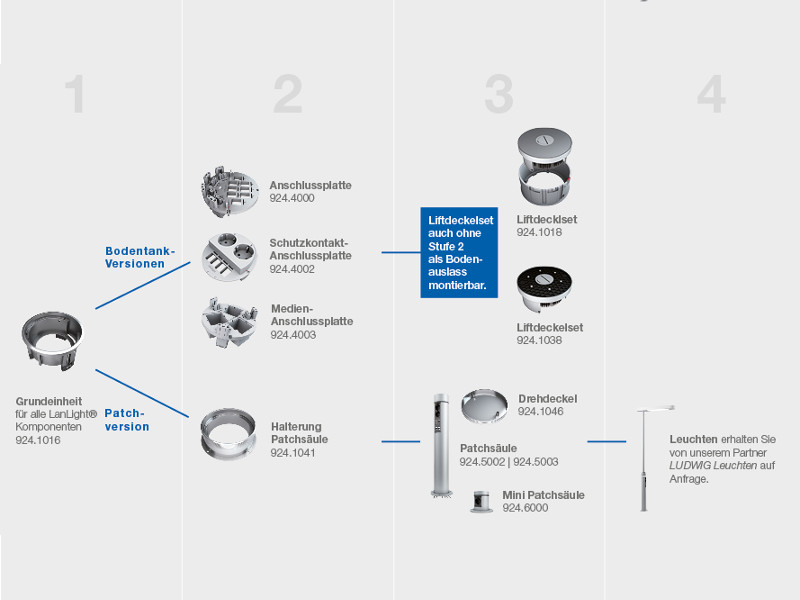

The Bachmann LanLight Basic module can accommodate different module inserts: ground tank inserts are available for all media - from the protective socket to the HDMI socket - which can also be delivered with pre-installed test leads, if required. Special feature: LanLight offers a new self-contacting system for the basic module with the mobile energy column, in which all connections are made in a single plug-in connection.

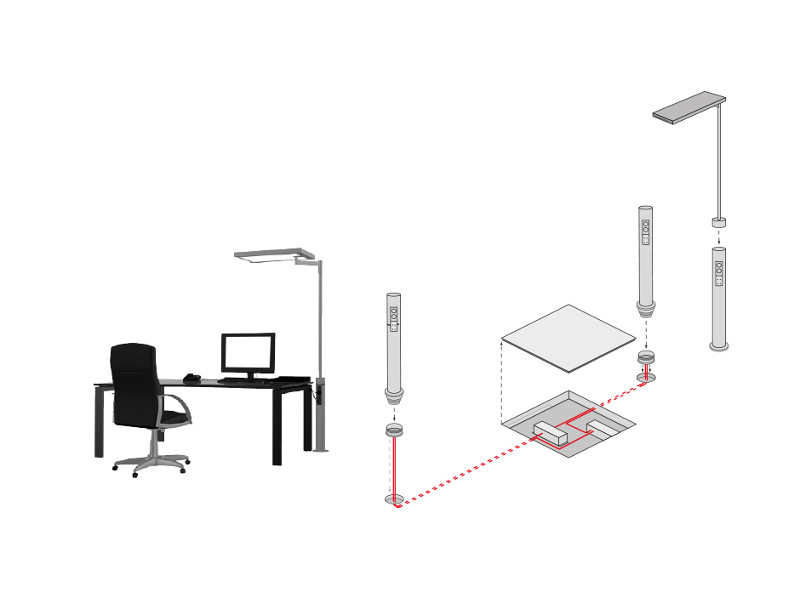

The Bachmann LanLight unit 924.1016 is installed in a hole of only 152 mm in diameter. This uncomplicated and simple assembly, the compact design and the highly functional modularity make it possible for installations and energy consumers to be installed only where they are actually used. This allows LanLight to be installed as required and can be easily uninstalled again. Advantage: individual system components are always used again during restructuring and the usual maintenance of installations is not necessary.
The Bachmann LanLight modular installation unit (824.1016) as a basic unit is suitable for all LanLight components for mounting in double and hollow ground soils with a thickness of 25 to 70 mm (column version floor thickness at least 5 mm).
Key features Bachmann LanLight modular installation base unit (924.1016)
- Material: Die-cast aluminium
- Base unit for all LanLight components
- Installation in double and hollow floor
- Floor strength: 25-70 mm (column variant from 35 mm)
- Fixation via three clamping claws
- Total height: 97 mm
- Depth: 93 mm
- Outer diameter: 162 mm
| Product sheet: |  [pdf, 523 kb] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Installation manual: | [pdf, 64 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silber |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
