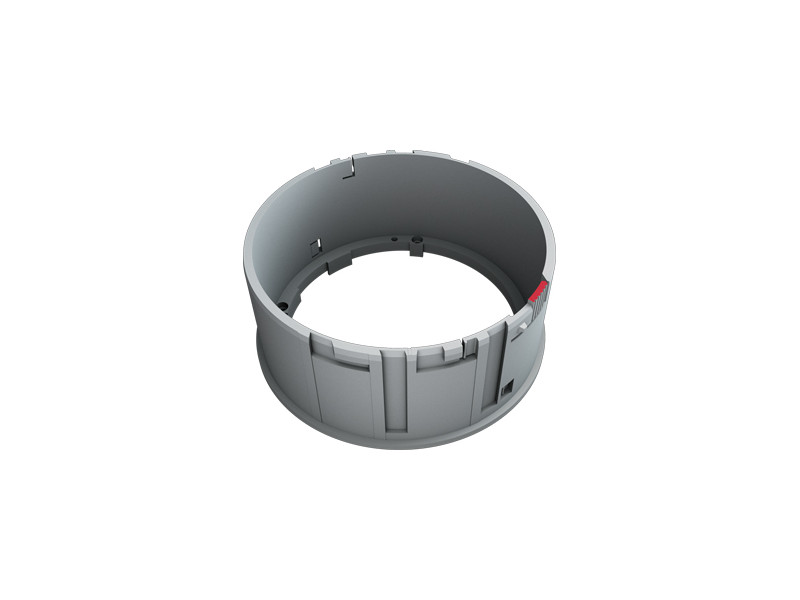

Bachmann LanLight lift cover set installation modular recessed box (924.1018)
The Bachmann Lift cover set 924.1018 with stainless steel inlay has two different positions: use state open or unused condition closed. The cover set is equipped with a dust cover as cable entry, a labeling card for connections and a latching in open state.
Bachmann LanLight lift cover set installation modular recessed box (924.1018)

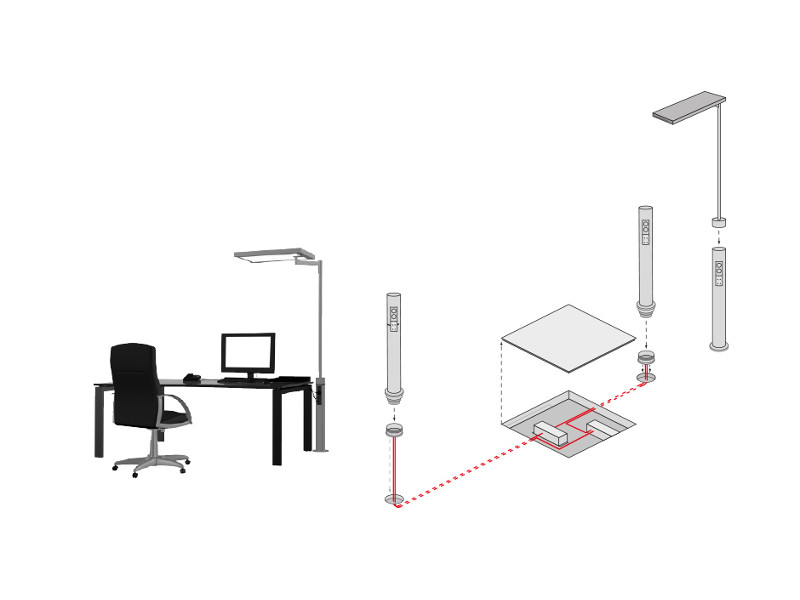

Bachmann LanLight 924.1018 combines energy, network connectivity, media connections and even lighting in a modular, multifunctional system, and allows for the flexible use and design of office areas with consistent modularity. The supply system creates order in the connection of the workplace, increases the safety and integrates itself harmoniously and discreetly into the ambience with its clear form language and the high-quality material.
The Bachmann lift cover set with stainless steel inlay 924.1018 has two different positions: use state open or unused condition closed. The cover set is equipped with a dust cover as cable entry, a labeling card for connections and a latching in open state.
Key features Bachmann LanLight lift cover set installation modular recessed box (924.1018)
- Incl. stainless steel Inlay
- Positions: Utilization state open, unused state closed
- Incl. catch mechanism when open
- Incl. dust protection as cable bushing
- With labelling card for connections
- Inlay diameter: 45 mm, outside: 142 mm
- Lift cover diamter: 146,4 mm
- Cover diameter: 128,8 mm
| Product sheet: |  [pdf, 523 kb] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silber |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
