Bachmann LanLight connecting plate 8P/4S with breakout cable + GST18 (924.4001)

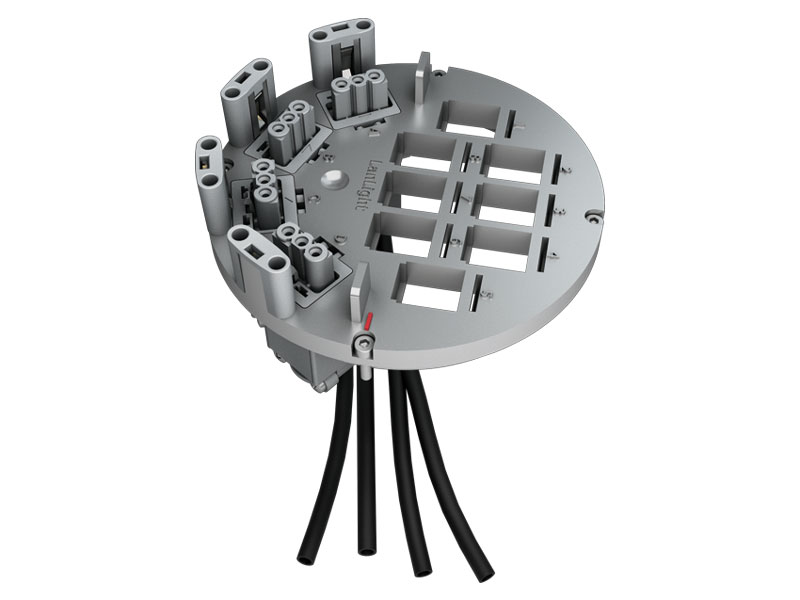

The Bachmann LanLight connection plate (924.4001) 8P / 4S with breakout cable + GST18 for mounting in the LanLight lift cover set is suitable for the connection of up to 4 Wieland GST18i3 sockets (power) and 8 data jacks (Keystone).
Bachmann LanLight connecting plate 8P/4S with breakout cable + GST18 (924.4001)

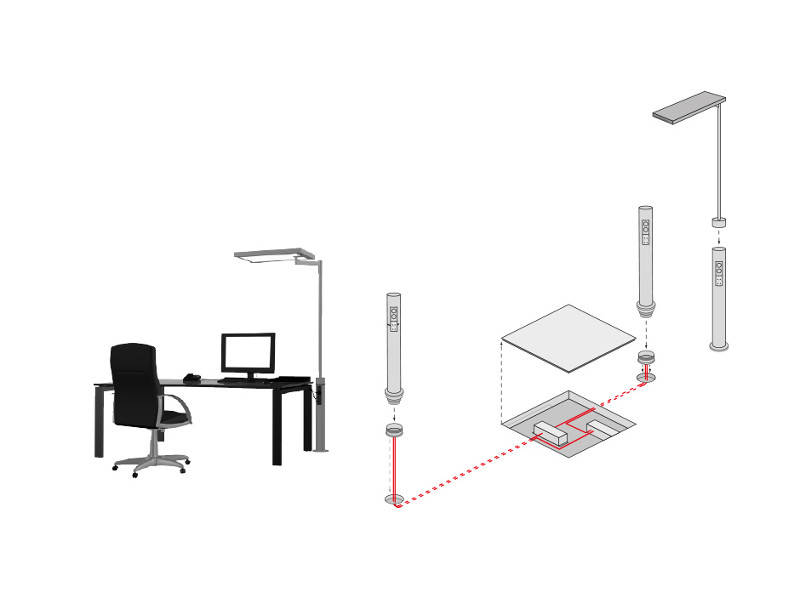

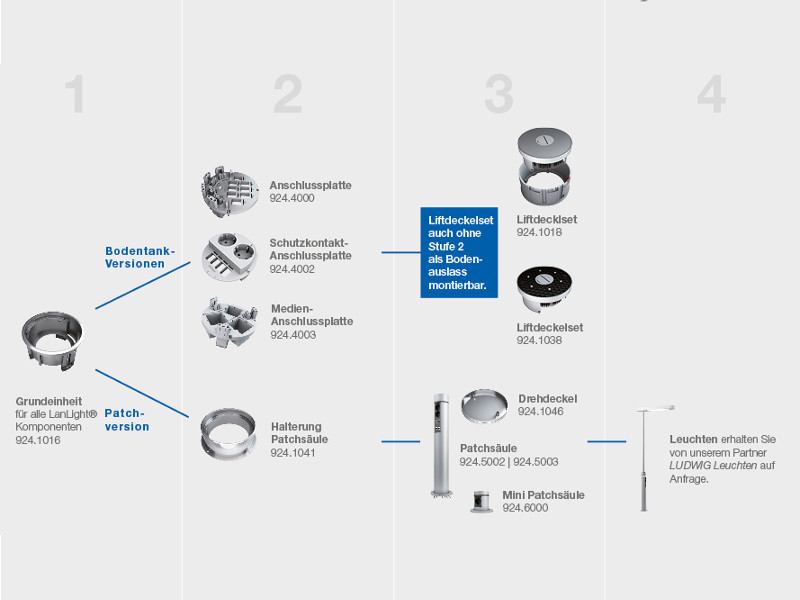

Bachmann LanLight connecting plate 924.4001 combines energy, network connectivity, media connections and even lighting in a modular, multifunctional system, and allows for the flexible use and design of office areas with consistent modularity. The supply system creates order in the connection of the workplace, increases the safety and integrates itself harmoniously and discreetly into the ambience with its clear form language and the high-quality material.
The Bachmann LanLight connection plate 8P / 4S with breakout cable and GST15i3 is suitable for the connection of up to 4 Wieland GST18i3 sockets (power) and 8 data jacks (Keystone) and for installation in the LanLight lift cover set.
Key features Bachmann LanLight connecting plate 8P/4S with breakout cable + GST18 (924.4001)
- Rear Strain relief for power connections
- For connectig up to 4 Wieland GST15i3 sockets (power) and 8 data jacks (keystone)
- Disengagement aid for Wieland GTS15i3 plugs
- Including 0,2 m H05VV-F3G 2.5 mm² supply cable to GST18i3
- Coded connecting points (data1-8, power A-D)
- Diameter: 114,8 mm
| Product sheet: |  [pdf, 523 kb] |
|---|---|
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silber |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
