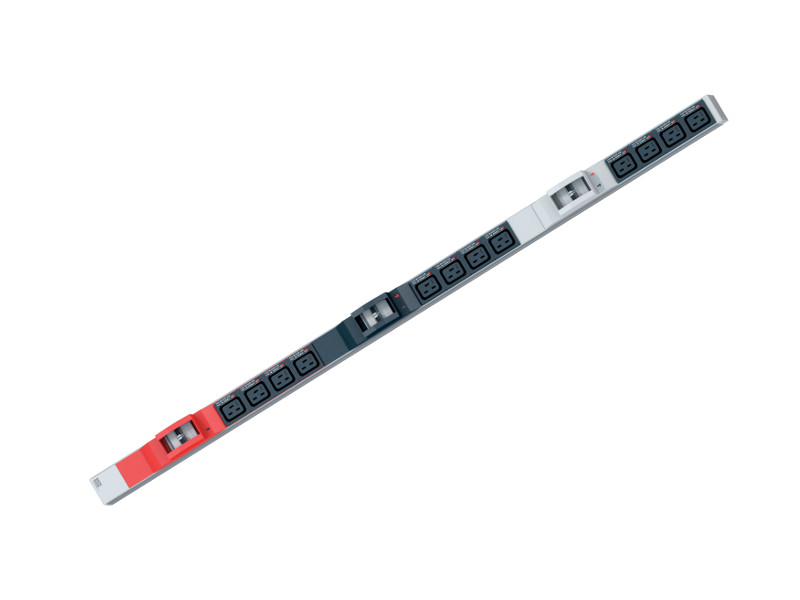

Bachmann IT PDU Vertical power strip 12x C19 3 phases 1U (800.0100)
The Bachmann power strip 800.0100 is a IT PDU power strip Vertical with 1U Alu-Profile for an efficient power distribution in the datacenter, server rack, or network rack. The power distribution unit contains 12x C19 socket outlets divided into 3 phases with line circuit breaker.
Bachmann IT PDU Vertical power strip 12x C19 1U (800.0100)
With its IT PDU Basic BACHMANN provides a huge choice of PDUs in a high-quality aluminium profile. The size of the high-quality and very stable aluminum profile of the Bachmann IT PDU Vertical 800.0100 is compact 44 x 47 mm. The space-saving design thus provides room for data cabling and airflow for the air-conditioning of the server rack.
Key features Bachmann 12-way power strip 12x C19 1U (800.0100)
- PDU Basic ALU 1U VM (32A / 400V / 50 Hz)
- 12x IEC C19 socket outlets lockable, divided into 3 phases with labeling of the phases
- Each phase divided into 2 blocks, each block fused with line circuit breaker 16A 1-pol.
- Character C
- Power supply: 3,0m 5G4mm² with CEE plug 32A 5-pol. red
- Dimensions (WxHxD): 1075 x 44 x 47 mm
- Incl. Mounting bracket with screws
- Profile: Aluminium anodised
- Space-saving and modularly expandable integration of the PDU into the server rack
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 1,2 MB] |
|---|---|
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Others |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
