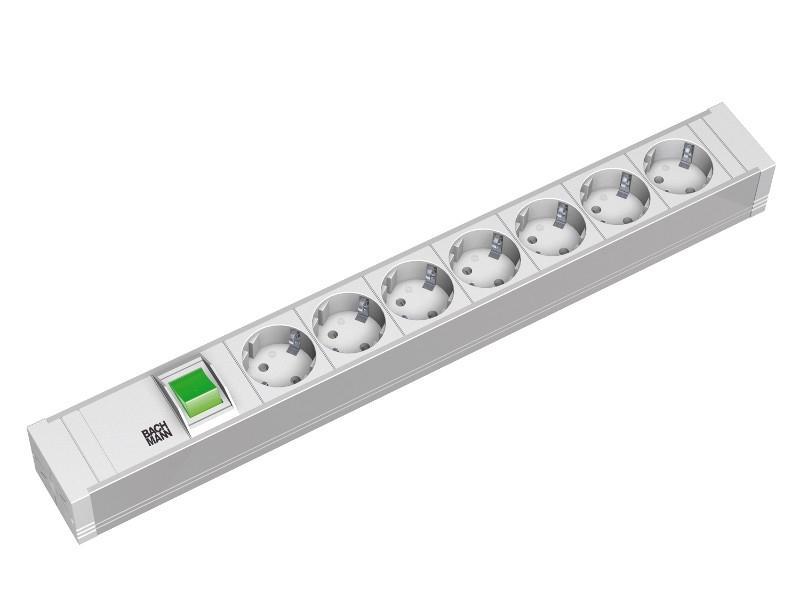

Bachmann IT PDU power strip 7x sockets 1x switch PVC (333.600)
The Bachmann power strip 333.600 is a 19 inch PDU power strip with 1,5U PVC-Profile for an efficient power distribution in the datacenter, server rack, or network rack. The power distribution unit contains 7x german type socket outlets, a switch and a 2,0m power supply cable with right-angled earthing contact plug.
Bachmann 19 inch power strip 1,5U 7x sockets 1x switch (333.600)
BACHMANN offers a huge range of socket outlets in a high-quality PVC profile for a future-oriented, highly efficient power distribution in the datacenter, server rack, or network rack with the IT PDU Basic and Vertical. With their extremely compact size of just 1,5 height units the Bachmann PDU 333.600 can be easily integrated into your IT rack. Their multi-functional mounting brackets allow the units to be easily mounted in various ways (e.g. inwardly recessed).
Key features Bachmann IT PDU 7x power strip 1,5U 1x switch (333.600)
- IT PDU Basic 1,5U (230V / 50Hz)
- Torsionally rigid profile made of PVC
- Plug: right-angled earthing contact plug
- 7x german type socket outlet 35° twisted, grey
- 1x switch, 2-pole, illuminated
- Dimensions: 440 x 52,4 x 43,7 mm
- Power supply: 2,0m H05VV-F 3G 1,50 mm²
- Rated voltage: 230V
- Incl. mounting brackets
- End caps riveted, non rewireable
- Finish profile: grey Pantone cool grey 2U
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 1,2 MB] |
|---|---|

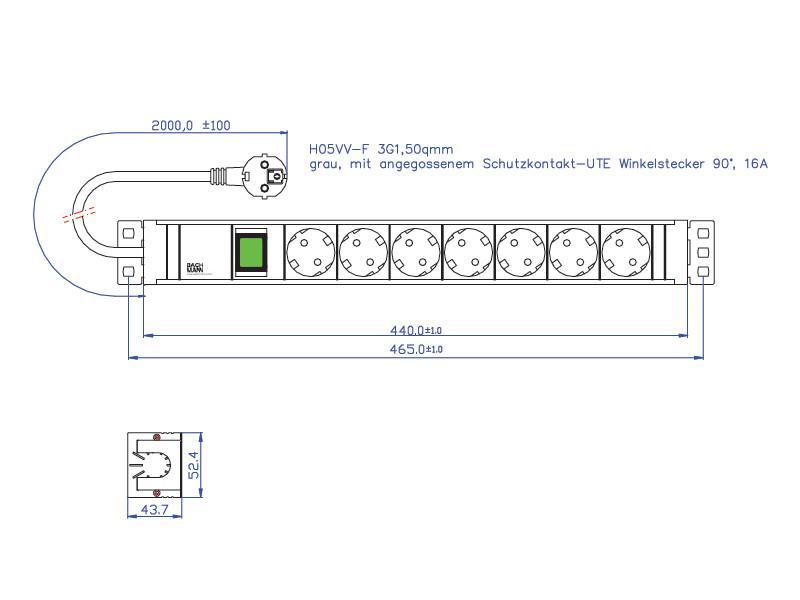

| Technical drawing: | [pdf, 40 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 7 |
| color: | Grey |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
