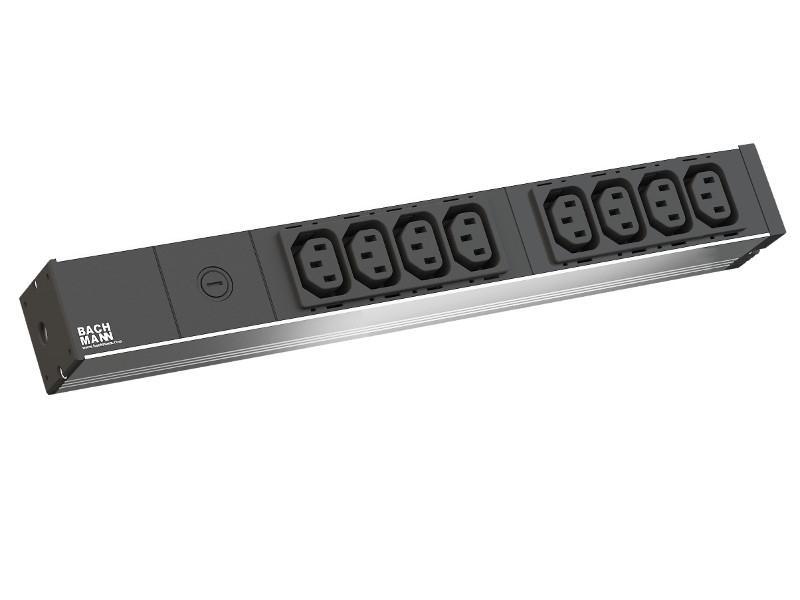

Bachmann IT PDU 19 Inch Power Strip 8x C13 1RU with Microfuse CEE 7/7 Connector (333.408)
Bachmann 19 Inch Power Strip 8x C13 cold socket with 10A microfuse(333.408)
For a future-oriented and highly efficient power distribution in a data center, server rack or network rack, BACHMANN has developed the IT PDU Basic and Vertical that offers a huge selection of socket strips in a high-quality aluminum profile in the portfolio. Thanks to the compact design of only 1 RU, the Bachmann PDU 333.408 can be integrated into IT racks to save space. By using the included brackets different installation variants (eg inwardly offset mounting) are possible.
Key features Bachmann 19inch 8-fold C13 power strip microfuse 10A (333.408)
- IT PDU Basic 1U (230V / 50Hz)
- Plug Type: C14 Cold Plug Plug
- 8x C13 Cold Plug Sockets, Black
- Microfuse 10A, Interchangeable
- Cable: 2,0m H05VV-F 3G 1,50 mm²
- Nom Appearance: 230V
- Measurements (WxHxD): 440 x 44.5 x 44.5 mm
- Incl. Bracket
- End riveted, not reconnectable bar
- Color profile: gray RAL 7035
More about this BACHMANN product
Does this BACHMANN product not meet your requirements? We are happy to advise you in detail on your concerns. Do not hesitate to contact us - our team is here for you.
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 32 kb] |
|---|---|

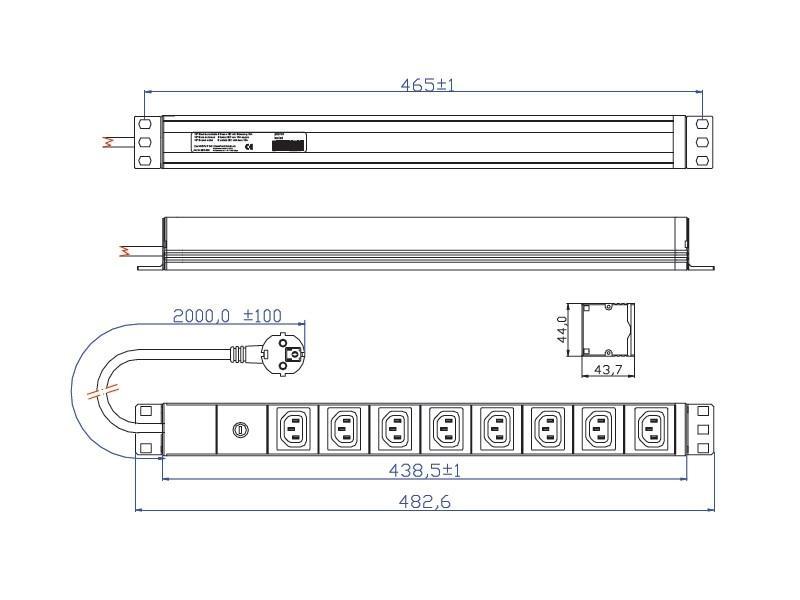

| Technical drawing: | [pdf, 54 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver/Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
