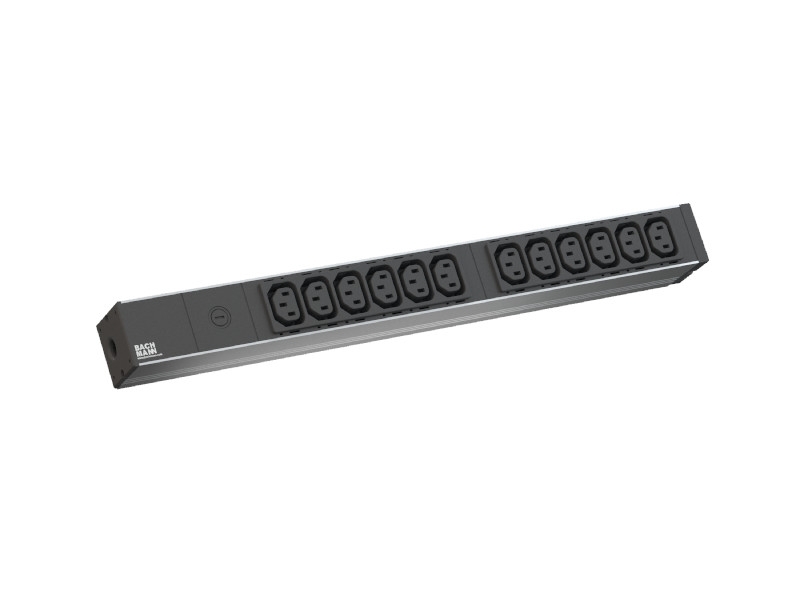

Bachmann IT PDU 19 Inch Power Strip 12x C13 1RU with Micofuse(800.2331)
Bachmann IT PDU 19 Inch Power Strip Micofuse 12x C13 1RU (800.2331)
For future-oriented and highly efficient power distribution in a data center, server rack or network rack, BACHMANN's IT PDU Basic has a huge selection of socket strips in a high-quality aluminum profile in its portfolio. Due to the extremely compact design of only 1 rack unit, the Bachmann PDU 333.2331 can be integrated into the IT rack to save space. With the aid of the multifunction brackets, different installation variants (for example, installation offset inwards) are easily possible.
Technical details Bachmann 19 inch 12-fold C13 power strip with microfuse 10A (333.2331)
- IT PDU Basic 1U (230V / 50Hz)
- Plug type: CEE7 / 7 protective contact plug type F
- 8x C13 IEC sockets
- Microfuse 10A, interchangeable
- Cable: 2,0m H05VV-F 3G 1,50 mm²
- Rated voltage: 230V
- Dimensions (WxHxD): 438 x 44 x 44 mm
- Incl. bracket Rifles riveted,
- not re-connectable
- Color profile: gray RAL 7035
More about this BACHMANN product
This BACHMANN product does not meet your requirements? We are happy to advise you in detail on their concerns. Do not hesitate to contact us - our team is here for you.
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
