Bachmann BN ESSENTIAL Metered - 19" PDU with 6xCEE7/3 & display (BM0024203)
Highlights
- Energy measurement per phase for full control
- Integrated display for direct on-site readout
- 6x Schuko sockets for versatile applications
- Network-enabled with web interface and SNMP
- Compact 19\" form factor – ideal for any rack
Efficient 19" PDU with Metering Function for Professional Energy Management
The Bachmann BN ESSENTIAL Metered PDU with 6x protective-earth sockets is the ideal solution for reliable power distribution and precise energy monitoring in 19" racks. It was specifically developed for use in server and network cabinets and enables transparent control of all relevant energy data. By measuring per phase you gain detailed insights into current, voltage and power values. The integrated 2" TFT color display shows all important data directly on the device, while the network capability allows central evaluation via the web interface.
The compact design based on the proven BlueNet architecture ensures optimal integration in the rack. At the same time, support for external sensors enables extended monitoring of environmental parameters such as temperature and humidity.
Technical details / Features of the BN ESSENTIAL Metered (6x Schuko)
- Energy measurement per phase
- Non-switchable outlets
- 16 A / 230 V / 3.6 kW input
- Supply cable 2.0 m | 1.5 mm² with CEE 7/7 protective-earth plug (angled)
- 6x protective-earth sockets (CEE 7/3, 35°)
- Measurement of current, voltage, reactive power, apparent power and active power
- Measurement of active energy as well as monitoring of frequency and power factor
- 2x Ethernet ports (1 Gbit/s)
- 2x interfaces for external sensors (e.g., temperature, humidity)
- 1x USB-A port
- Hot-swappable controller (Hot Swap)
- Integrated web server with web interface
- SNMP support
- 2.0" TFT color display
- Mountable horizontally or vertically in a 19" rack
- 1U height
- Robust aluminium housing

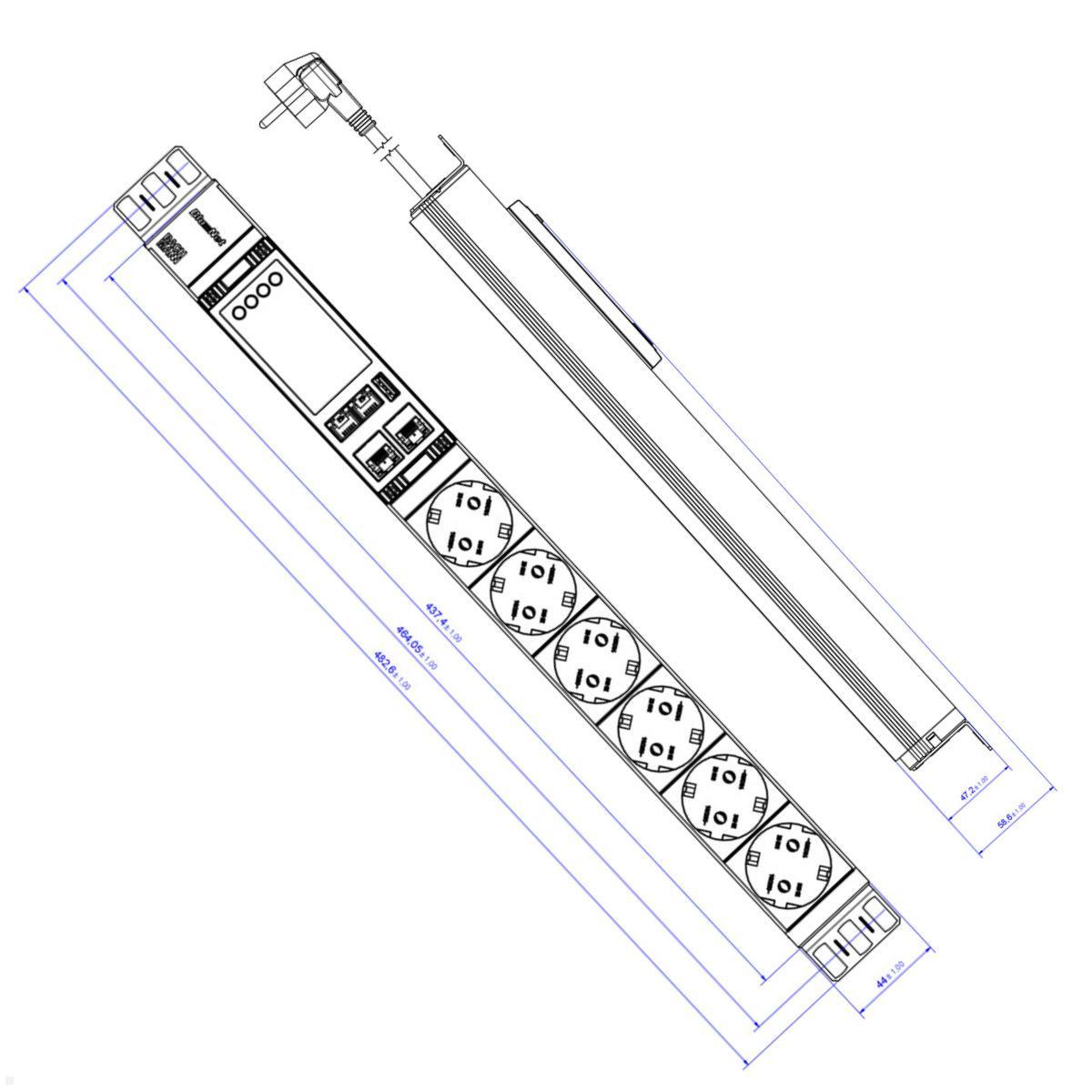

- Dimensions (L x W x H): approx. 437.4 x 44 x 58.6 mm
- Includes mounting brackets and fastening hardware
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| Größe PDU: | 19" |
| Messen: | pro Phase |
| Number of sockets: | 6 Outlets |
| Phasen: | 1-phasig |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black |
| Form: | eckig |
| USB-Charger: | USB-A |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN ESSENTIAL Metered PDU?
A 19-inch PDU with metering for professional energy management and 6x protective-earth sockets (CEE 7/3, 35°).
-
How many sockets and what type does it have?
It has 6x protective-earth sockets (CEE 7/3, 35°); non-switched.
-
What measurements are provided per phase?
Current, voltage, reactive power, apparent power and real power are measured; energy is measured, and frequency and power factor are monitored.
-
What display and network features does it have?
A 2.0-inch TFT color display shows the key data at the unit. It also has an integrated web server with a web interface and SNMP support.
-
What network ports and external sensor interfaces are available?
Two Ethernet ports (1 Gbps) and two interfaces for external sensors (e.g., temperature, humidity) plus a USB-A port.
-
What are the input specifications and lead?
Input: 16 A / 230 V / 3.6 kW; lead length 2.0 m, 1.5 mm² with a CEE 7/7 protective plug (angled).
-
How is it mounted and what housing does it have?
Mounting is horizontal or vertical in a 19-inch rack; 1 U height; robust aluminium housing; includes mounting brackets and fixing material.
The Bachmann BN ESSENTIAL Metered PDU with 6x Schuko sockets is the perfect solution for secure and efficient power distribution in modern IT environments. It has been specially designed for use in 19" racks and enables precise monitoring of energy consumption. Companies benefit from a transparent presentation of all relevant measurements and can optimally fine-tune their infrastructure. With its 6x Schuko sockets, the PDU is ideal for connecting a variety of devices in the rack. The integrated per-phase measurement function provides detailed information on current, voltage and power values, which can be evaluated both locally on the display and centrally over the network.
Why is a PDU with energy measurement useful?
A PDU with energy measurement helps to analyze power consumption precisely and identify saving potentials. The BN ESSENTIAL Metered enables continuous monitoring of all relevant parameters such as active, reactive and apparent power. This allows load peaks to be detected early and operational safety to be increased. Especially in data centers and network cabinets reliable power distribution is crucial. With this PDU you retain control of your power supply at all times and create the basis for efficient energy management.
What are the advantages of the integrated display?
The integrated TFT color display allows quick checking of the most important measurements directly on the device. Technicians can immediately see how power consumption is developing on site without having to use additional tools. This saves time and makes maintenance tasks significantly easier. The clear presentation ensures that even complex data is quickly understandable – a clear advantage in daily operation.
How can the PDU be integrated into existing systems?
Thanks to integrated network connections and a web interface, the Bachmann BN ESSENTIAL Metered - 19" PDU with 6x CEE7/3 & display (BM0024203) can be easily integrated into existing monitoring systems. Support for SNMP enables centralized monitoring and evaluation of all measurement data. The compact design allows both horizontal and vertical mounting in the rack. This leaves enough space for cabling and air circulation, which additionally improves the efficiency and service life of IT systems. The Bachmann ESSENTIAL Metered PDU is thus a reliable and economical solution for companies that want to modernize their power distribution and make their infrastructure more efficient.
