Bachmann DUE 2-fold socket with supply line, cover stainless steel (929.000DE)
2-way built-in socket with cover
Bachmann DUE 929.000DE is the ideal power strip for offices, kitchens and other areas. The 2-way built-in socket with cover can be easily recessed into a tabletop or wall and provides an elegant power connection. Thanks to the supplied two-part cover in stainless steel look, the multiple socket outlet can be slid on flexibly and also convinces in terms of design during use. The low installation depth of 45 mm enables space-saving integration in kitchen countertops, in desks as a table connection panel as well as installation above drawers. Bachmann DUE also presents itself perfectly in form and function on the wall. Even after installation, replaceable covers offer the option of customizing the appearance in terms of color and adapting it to its surroundings or deliberately setting highlights.
Key features Bachmann DUE 2-fold built-in socket outlet with stainless steel cover (929.000DE)

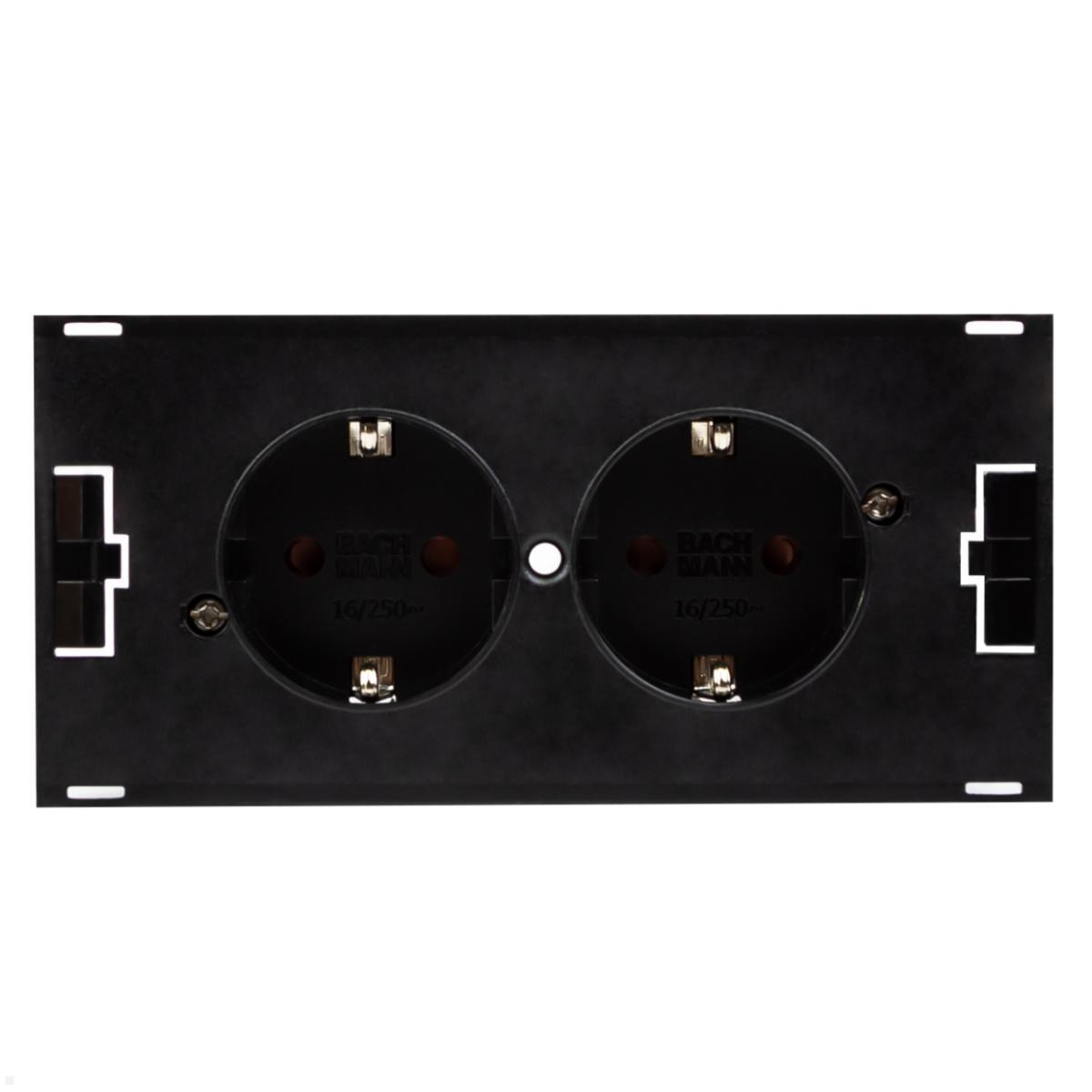

- 2x protective contact socket outlet including cover
- Sockets with child protection, rotated 90 degrees
- Space-saving even when open
- Cover with integrated water drain
- Dimensions of power strip (WxHxD): 139.2 x 49.4 x 67.3 mm
- Dimensions cover (WxHxD): 141.2 x 4.65 x 71.1 mm
- Installation depth without cable: 45 mm
- Table mounting plate thickness: 10 - 40 mm
- Power input: 2.0 m cable with wire end ferrules and enclosed mounting plug
- Protection class: IP20
- Color socket: black, similar to RAL 9005
- Color cover: stainless steel
- Material: plastic
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | 1x DUE power strip 929.000 | 1x mounting template | 1x mounting plug | 1x DUE cover 929.100 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Stainless Steel |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
