Bachmann DESK RAIL 2x Socket CH, 1x USB Charger, 1x Custom Module (941.004)

Bachmann DESK RAIL 2x Steckdose CH, 1x USB Charger, 1x Custom Modul 941.004

The clever system of the Bachmann Swiss DESK RAIL (941.004) allows media, power and data connections to be attached directly to common railing systems on a third level. The big advantage is an extra space on the desk and at the same time a comfortable, quick access to various ports. The 90° Bachmann custom modules are central components for audio-, Video- and network connections and can be integrated into the DESK RAIL.

Socket strip for railing systems

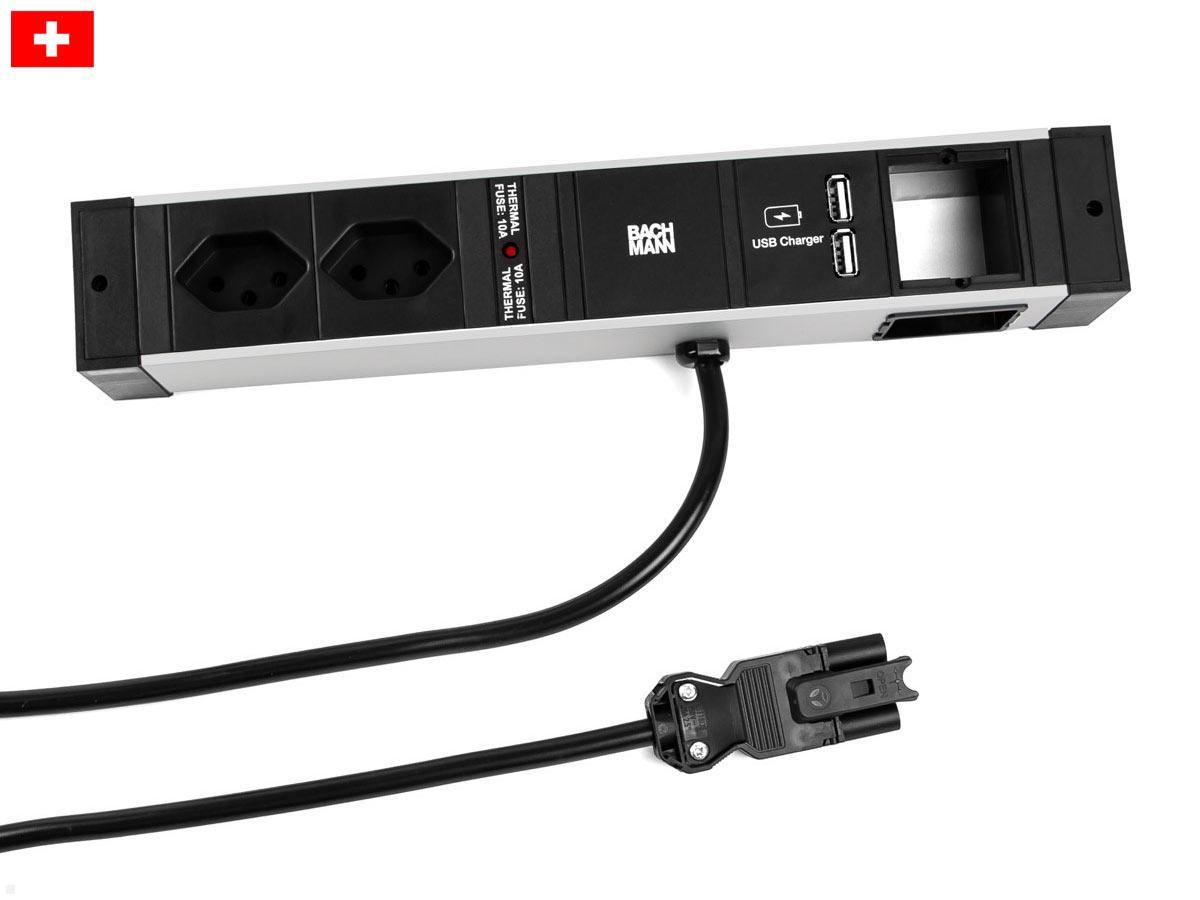

The Bachmann DESK RAIL 941.004 is equipped with 2 Swiss sockets, 1 USB dual charger and 1 custom module for individual assembly. The attachment succeeds simply by screwing on the front, while data and power supply lines from below. The Bachmann DESK RAIL is, thanks to the universal mount, almost compatible with all standard railing systems.

Key features DESK RAIL power strip

• Material profile: aluminum anodised
• Material socket: plastic
• Dimensions (WxHxD): 300x52x52 mm
• 2x Swiss socket - turned 90°
• 1x USB Doppelcharger 3,1A 5V DC
• 1x custom module
• Supply line: 2.0 m | H05VV-F | 3G1.5 mm²
• Plug: Wieland GST18i3
• 16A / 250V 50 Hz
• Compatible with the following railing systems: BENE, NOVUS, K & N, Steelcase, VS, etc.

Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
