Bachmann DESK 2 2x socket CH, 1x USB, 2x Custom Modul, white (902.230)

Bachmann DESK 2 2x socket CH, 1x USB, 2x Custom Modul, white 902.230

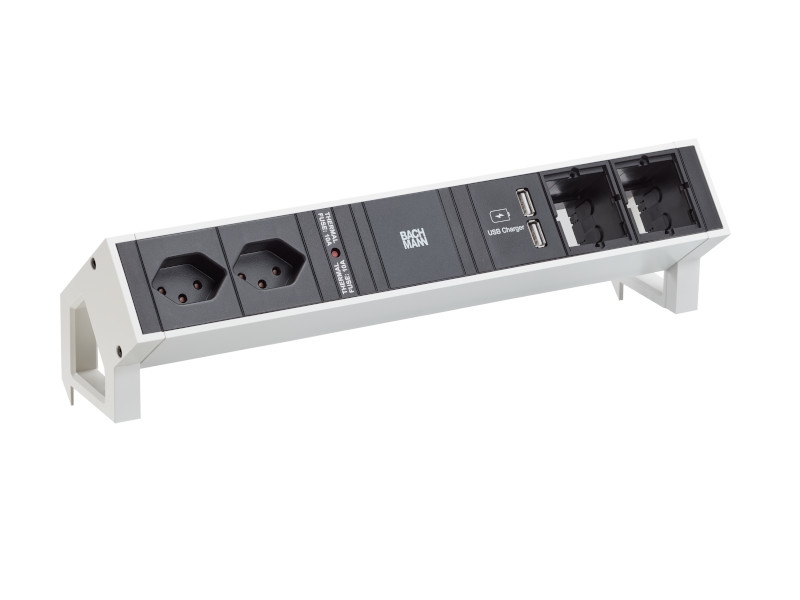

Bachmann DESK 2 (902.230) is a Swiss power strip that can be equipped with various communication modules. It is designed for flexible use in the office, in meeting rooms, in the home office or for desk sharing. The power strip is made of aluminum and available in different colors. The connections are screwed to the standardized module windows and can be easily converted.

Design solution for the modern living and working environment

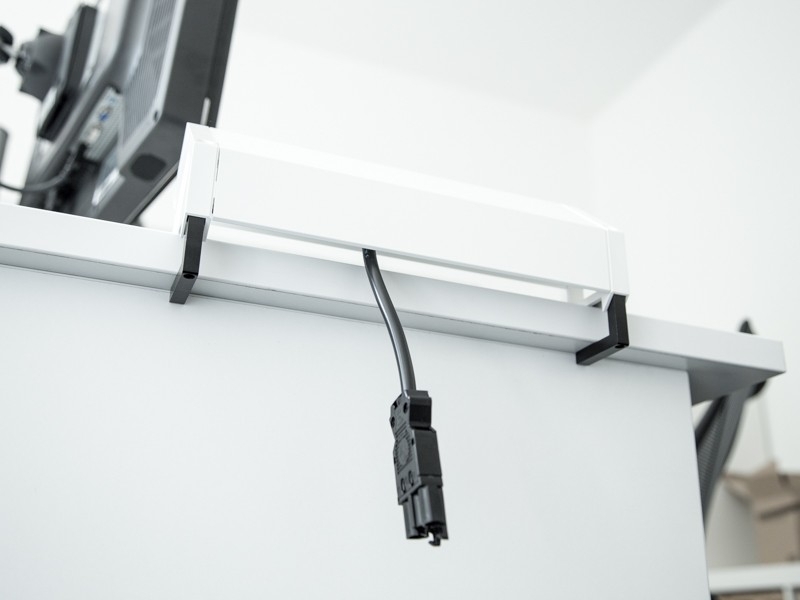

Desktop connection panel Bachmann DESK 2 (902.230) is attached to the tabletop with space-saving aluminum brackets, cables are routed behind the screen. Bachmann DESK2 is a winner of the red dot design award 2011, the IF Product Design Award 2012 and is nominated for the German Design Award 2012. The design is simple and clear, the processed materials are high quality and durable.

Key features Bachmann DESK 2 connecting panel

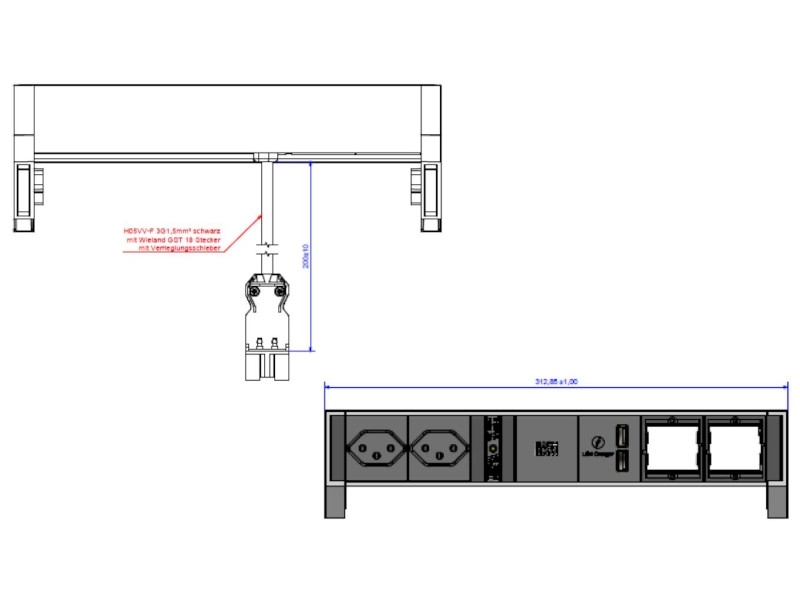

• Dimensions (WxHxD): 282 x 85 x 100 mm
• Painted in RAL 9010 white
• 2x socket CH Switzerland with child protection, turned 90°
• 1x USB Dual Charger (5.2V / 2.15A) for charging e.g. Smartphone, tablets
• 2x ABD for Custom Modul
• Material profile: aluminum, plastic outlet
• Current input: 0.2m H05VV-F3G 1.5mm² with Wieland GST18 / 3 plug
• Current output can be reached with distribution block 375.102
• Incl. Brackets and screws
• Tabletop thickness: 10-40 mm
• Connection: not re-connectable

Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
