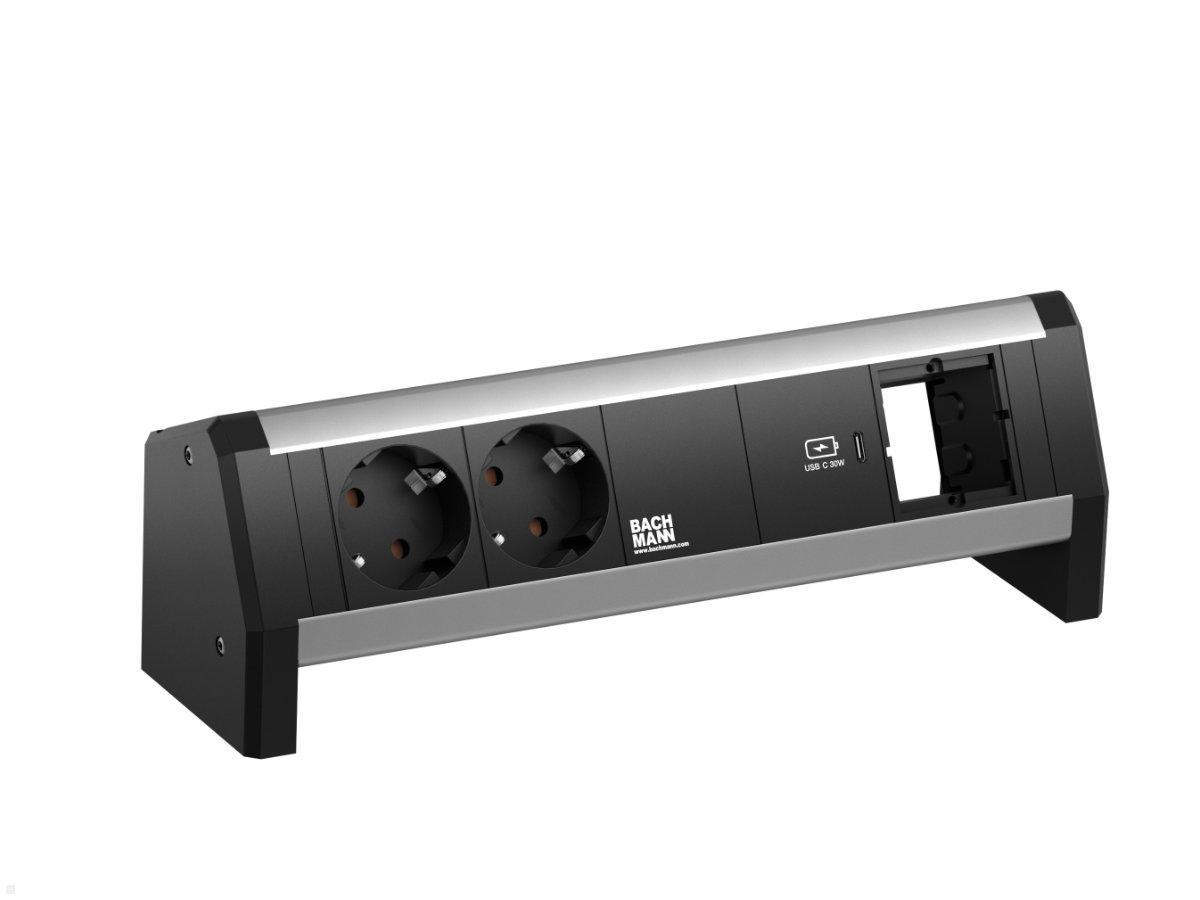

Bachmann DESK 1, 2x socket, 1 USB C Charger 30W, 1 CM (902.0815)
The Bachmann DESK 1 desk connection panel with 2x power socket and 1x USB C Charger and Custom Module is quickly and easily attached to the edge of the desk with a bracket set (not included).
Configurable desktop socket outlet with USB-C charger
The DESK 1 desk connection panel is quickly and easily mounted to the edge of the desk without damage using a bracket set (accessory). The configurable power strip with two safety sockets and a USB C 30W charger provides easy access to power connections for various devices (smartphones, tablets, laptops) and is also equipped with a custom module (CM). Custom modules can be easily attached with a screwdriver. In general, you can choose between preconfigured CM and individually configurable keystone frames with matching keystones. The rear of the configurable desktop socket outlet with USB-C charger has power input and power output contact connections for power supply or forwarding. These are touch-proof and have a locking mechanism in accordance with regulations, which can be unlocked if required. The ideal overall solution for individual office workstations is the combination of Bachmann DESK 1 and Bachmann STEP power strip. The Bachmann STEP power strip underneath the tabletop supplies power to permanently installed devices such as PCs, monitors, printers, etc. The Bachmann STEP power strip is screwed on under the table top or positioned in a channel under the table. With the integrated Wieland plug system, several power strips can be connected in series (cascading) in accordance with the standards.
Key features Bachmann DESK 1 (902.0815)
- Anodized aluminum profile
- 1x USB C Charger 30W
- 2x black sockets with earthing contact, turned 35
- 1x custom module (CM) empty
- Power input: GST18i3 connector
- Current output: GST18i3 socket
- Dimensions (L x W x H): approx. 292 x 74 x 93 mm
- GST18 leads must be purchased separately
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 158 kb] |
|---|---|
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf, 438 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | - |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver/Black |
| USB-Charger: | USB C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
