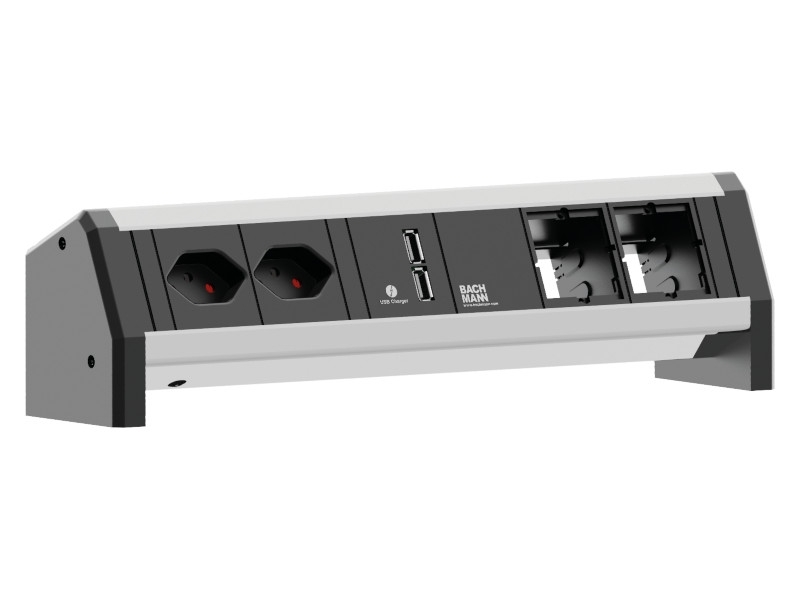

Bachmann DESK 1 2x power strip CH, 1x USB Charger, 2x Custom module (902.0161)
The Bachmann DESK 1 (902.0161) is equipped with 2x Swiss sockets, 1x USB Charger and 2x custom module for individual assembly. Using optional brackets, the DESK 1 can be clamped to the table or placed on the table without the brackets.
Bachmann DESK 1 2x power strip CH, 1x USB Charger 2x custom module 902.0161
The Bachmann DESK 1 socket strip (902.0161) is equipped with 2x Swiss sockets, 1x USB Charger and 2x custom modules for individual assembly. The multiple socket provides optimum conditions for data, media and energy management wherever these connections are needed flexibly. Popular applications are at home in the home office, meeting rooms or desk sharing.
Multiple socket for the desk
The modular design of Bachmann DESK 1 (902.0161) enables the individual connection of the socket strips with the communication and supply connections, which are required in each case. The Wieland plug-in system is available for the power connection. The data ports are equipped with adapters as standard. Using optional brackets, the DESK 1 can be clamped to the edge of the table or placed on the table without the brackets.
Key features Bachmann Table power strip
- Flexible use everywhere
- Dimensions (WxHxD): 324 x 74 x 93 mm
- 2x Swiss socket (10A)
- 1x USB Charger
- 2x custom module
- Power input: GST18
- Power output: GST18
- Socket unit without cable
- Material socket: plastic
- Material profile: aluminum anodised
- Bachmann DESK 1 is delivered without bracket
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 140 kb] |
|---|---|

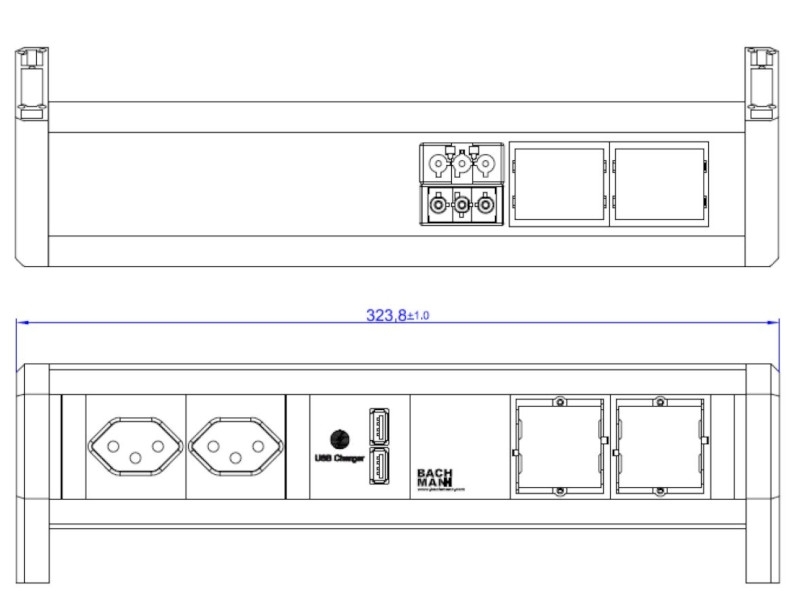

| Technical drawing: | [pdf, 81 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Silver/Black |
| USB-Charger: | USB A/A |
| Land: | Switzerland |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
