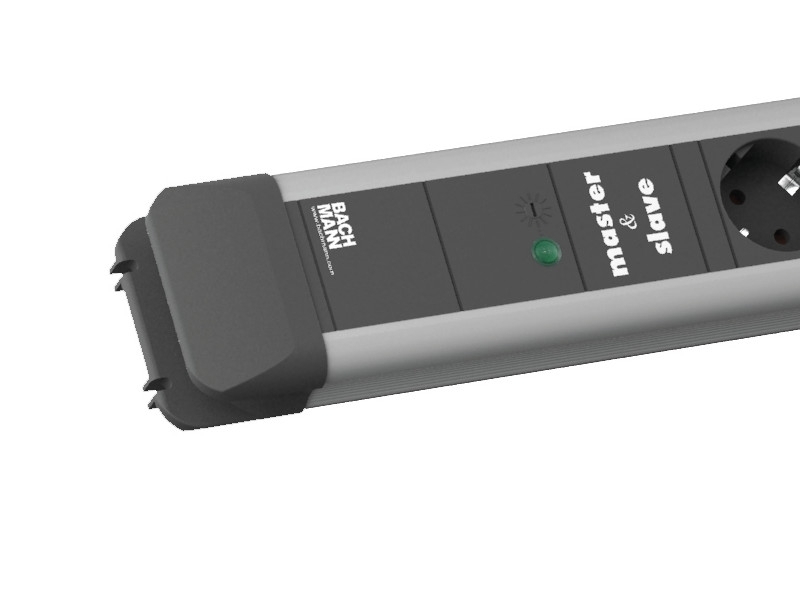

Bachmann CONNECTUS 1x Master + 4x Slave power strip (330.106)
The Bachmann CONNECTUS (330.106) socket strip is made of 1x master, 4x slave sockets. The Master & Slave electronics automatically save energy. When the device connected to the master socket is switched off and on, this device as well as all slave sockets (for example, PC, TV) are automatically switched off or on.
Bachmann CONNECTUS 1x Master + 4x Slave power strip (330.106)
The Bachmann CONNECTUS (330.106) socket strip consists of 1x master, 4x slave sockets. The advantage of this socket strip is that the Master + Slave electronics automatically save energy. When the device connected to the master socket is switched off and on, this device as well as all slave sockets (for example, PC, TV) are automatically switched off or on.
The Bachmann CONNECTUS (330.106) socket strip has an integrated child protection in the socket outlets, which are turned through 35 ° and are equipped with a nickel-plated protective contact. Practical are the multiple socket outlets for commercial and private use thanks to the integrated cable rewind.
Key features Bachmann CONNECTUS 1x Master + 4x Slave power strip (330.106)
- Socket colour: black
- Material: Plastic profile
- Dimensions (WxHxD): 480x72x49 mm
- 5-way power strip
- 1x Master socket
- 4x Slave socket
- Socket, 35° twisted
- Supply cable: 2,0 m H05VV 3G 1,50 mm²
- Incl. Protective contact angle plug
- IP protection class: IP20
- Integrated child protection
- Integrated cable rewind
- Easy mounting through mounting holes
- Black end caps can not be opened
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 77 kb] |
|---|---|
| Technical drawing: | [pdf, 75 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 4 + 1 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
