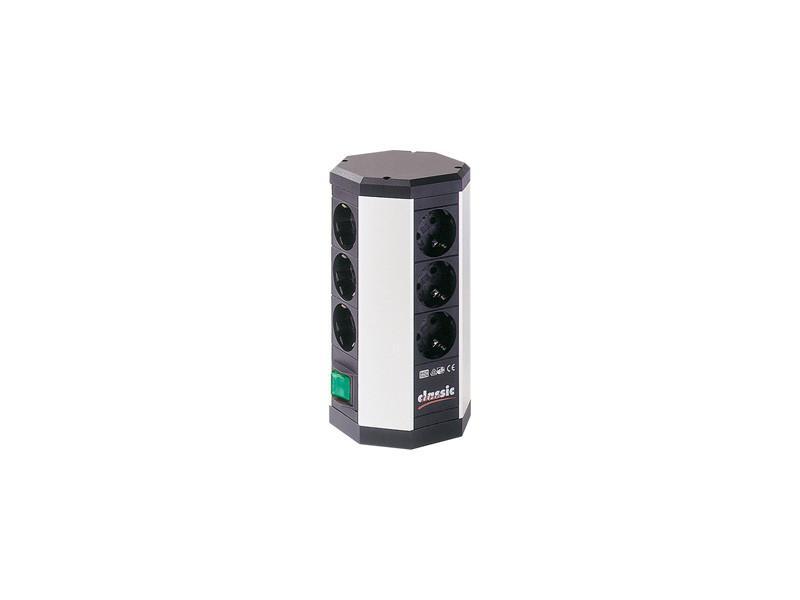

Bachmann COMPACT 12x socket 1xswitch supply cable 1,75m (334.001)
The Bachmann COMPACT 12 x safety sockets socket tower with 1 x switch in attractive design is ideal for a large number of plugs in limited space.
Bachmann COMPACT socket tower 12 x socket outlets (334.001)
At Bachmann, high-quality products and technical innovations have always been the foundation of our business. Our experience of the market, which spans decades, is also an important part of the mix, as it enables us to spot new trends, evaluate them and then quickly translate them into new products. That is why our partners, which include both tradespeople and retailers, always have access to a product range that it is the very latest the market has to offer – whether in terms of safety, environmental protection or energy-saving requirements.

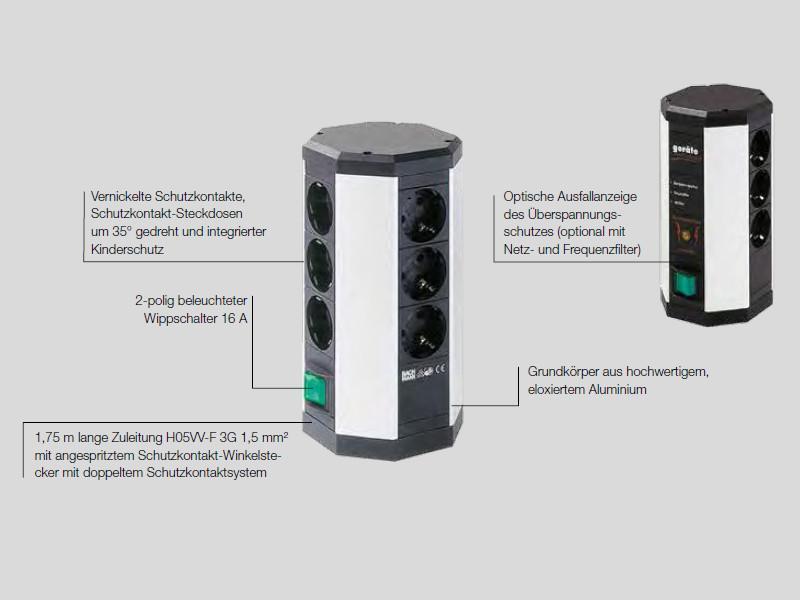

Key features Bachmann COMPACT 12 x earthed sockets Aluminium 334-001
- 12 x socket outlet with earthing contact, set at 35°
- 1 x switch, green
- Dimensions: 116 x 116 x 222 mm
- Max. 16 A / 3.680 W
- Supply cable: 1.75m H05VV-F 3G 1.50mm², black, with moulded right angle plug with dual earthing contact system, socket inserts black, set at 35°, shuttered
- Ideal for large number of plugs in limited space
- Attractive design
- Visual failure indicator for overvoltage protection (with optional mains and frequency filters)

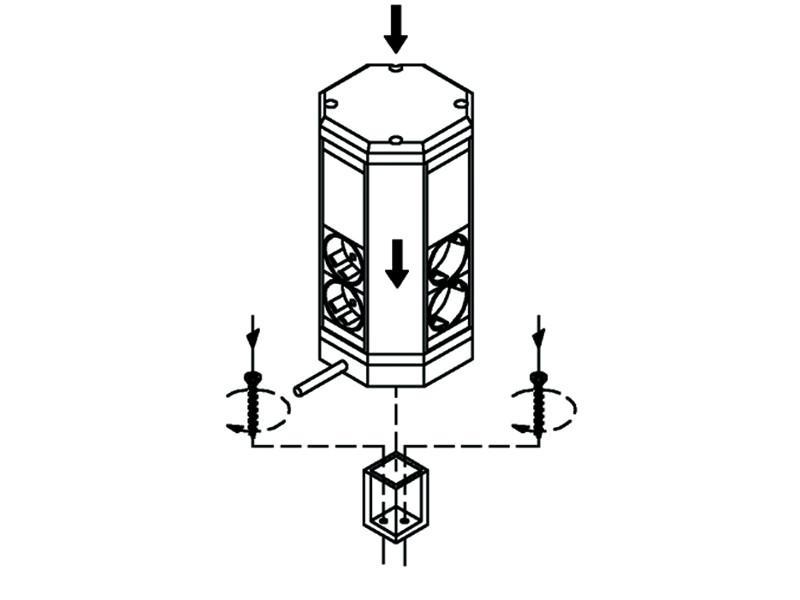

- Mounting accessories included
- Body in high-quality anodised aluminium
| Product sheet: |  [pdf, 125 kb] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver/Anthracite |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
