Bachmann CABLE RETRACTOR Cable extract HDMI coupling, HDMI plug, Cable 1,5m (930.551)

Bachmann CABLE RETRACTOR Cable extract HDMI coupling, HDMI plug, Cable 1,5m

The Bachmann cable management series frees Workplaces from cables lying around. The CABLE RETRACTOR enables optimal cable routing and cable organization between different devices and the user at the desk. Thanks to the combination of the CABEL RETRACTOR pull-out (930.551) and the holder, clean, tidy cables are always available. The system is very easy to use and due to the combination options with proven BACHMANN desk connection panels, offers a variety of possible uses.

Cable organization at the desk

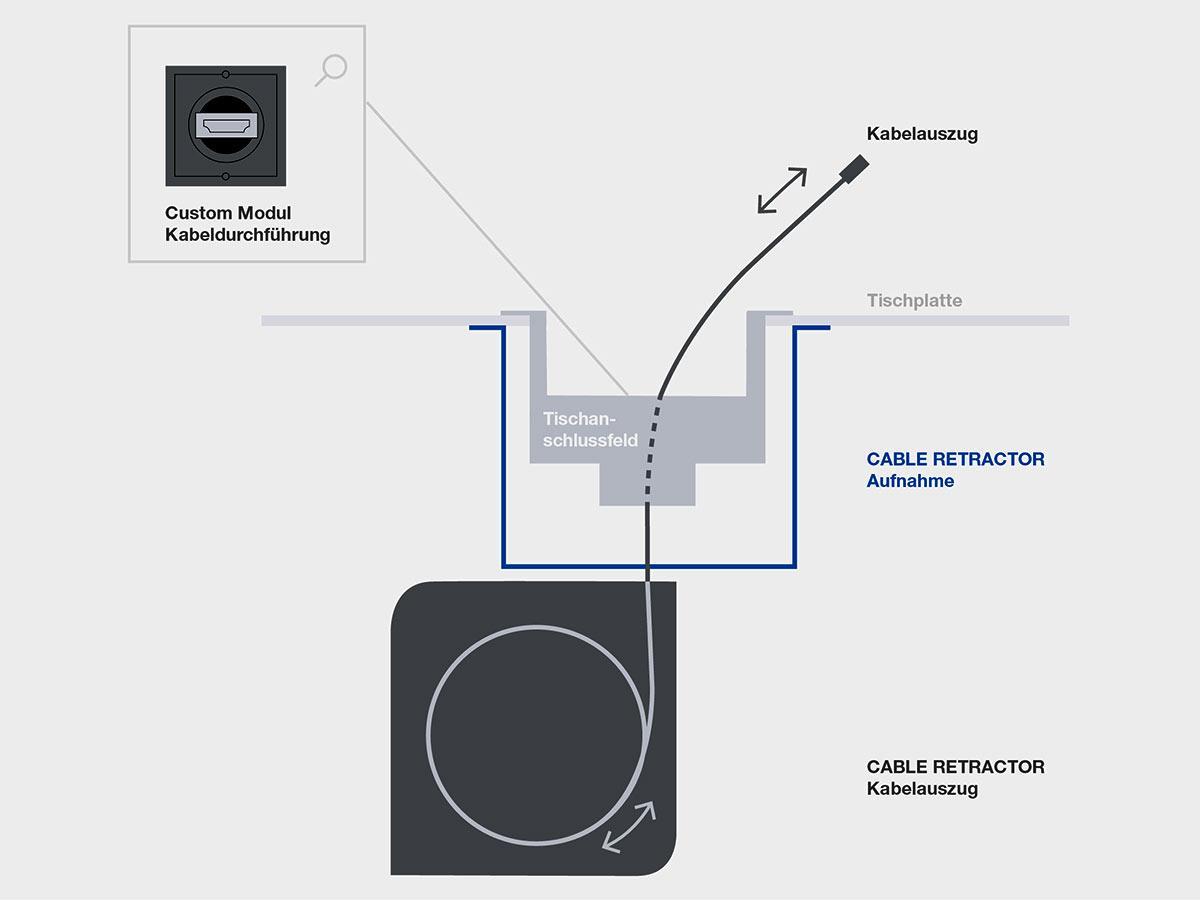

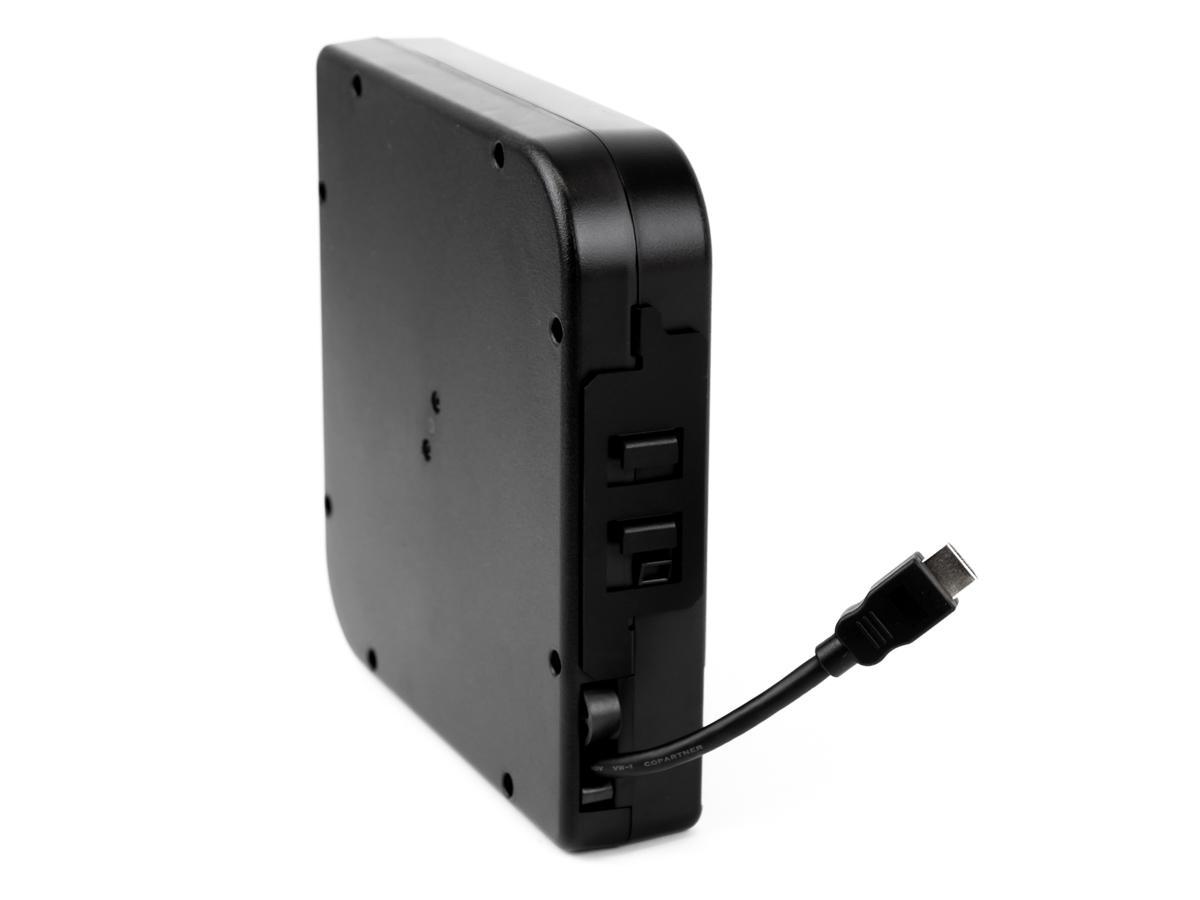

The Bachmann CABLE RETRACTOR cable extract (930.550) is equipped with a HDMI coupling and a HDMI plug. The cable extension length is 1.5 m. The HDMI cable pull-out allows for easy operation by manually pulling out and mechanically pulling in the cable. The cable extension can only be used in combination with the CABLE RETRACTOR holder for various Bachmann connection panels. The cable extension is mounted on the desired receptacle and combined with either the TOP FRAME + CONFERENCE, CONI COVER + POWER FRAME or CONI connection panels.

Technische Details Kabelmanagement CABLE RETRACTOR

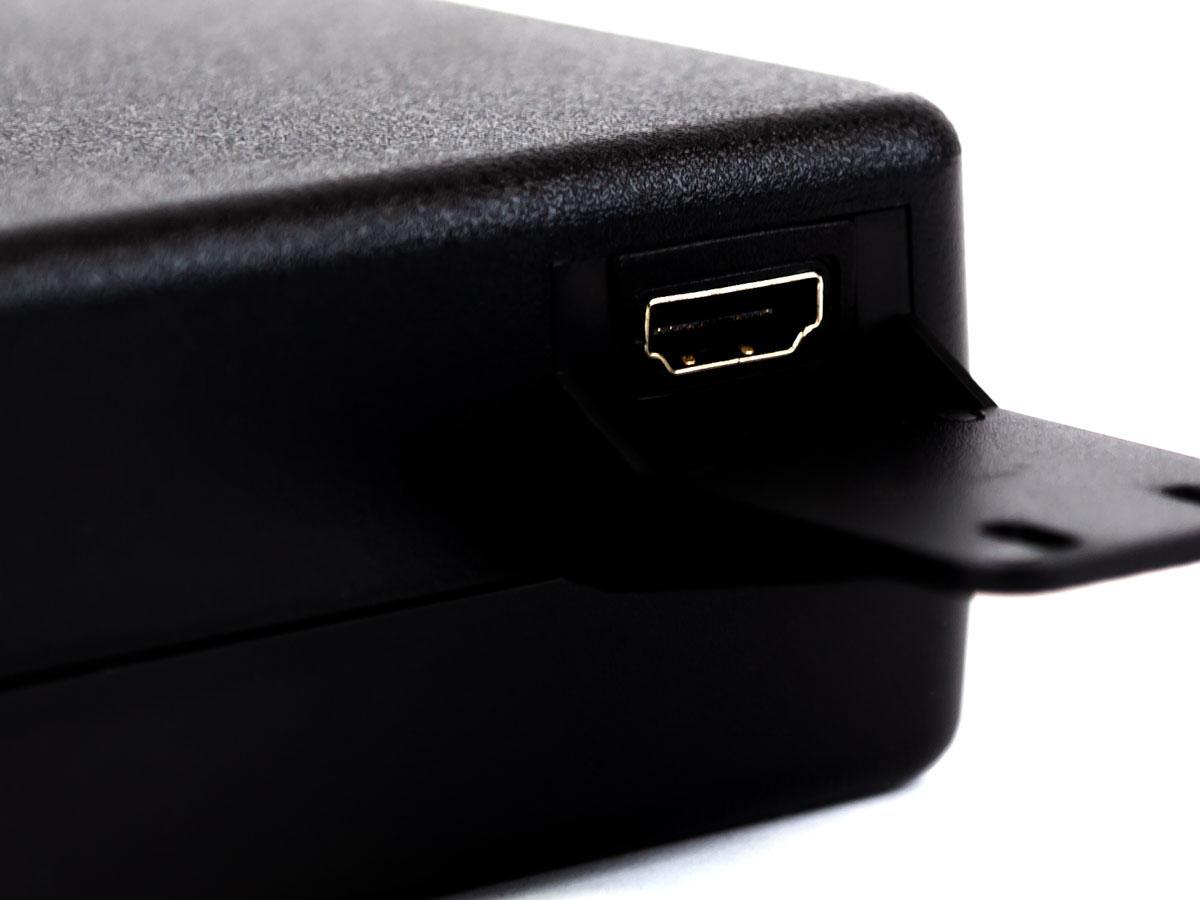

• Side cable extension: HDMI coupling
• Side cable: HDMI plug
• Cable extension length: 1.5 m
• Dimensions (WxHxD): 220x220x50 mm
• Clean tidy patchcords
• Easy manual pulling out of the cable
• Mechanical retraction of the cable by spring force

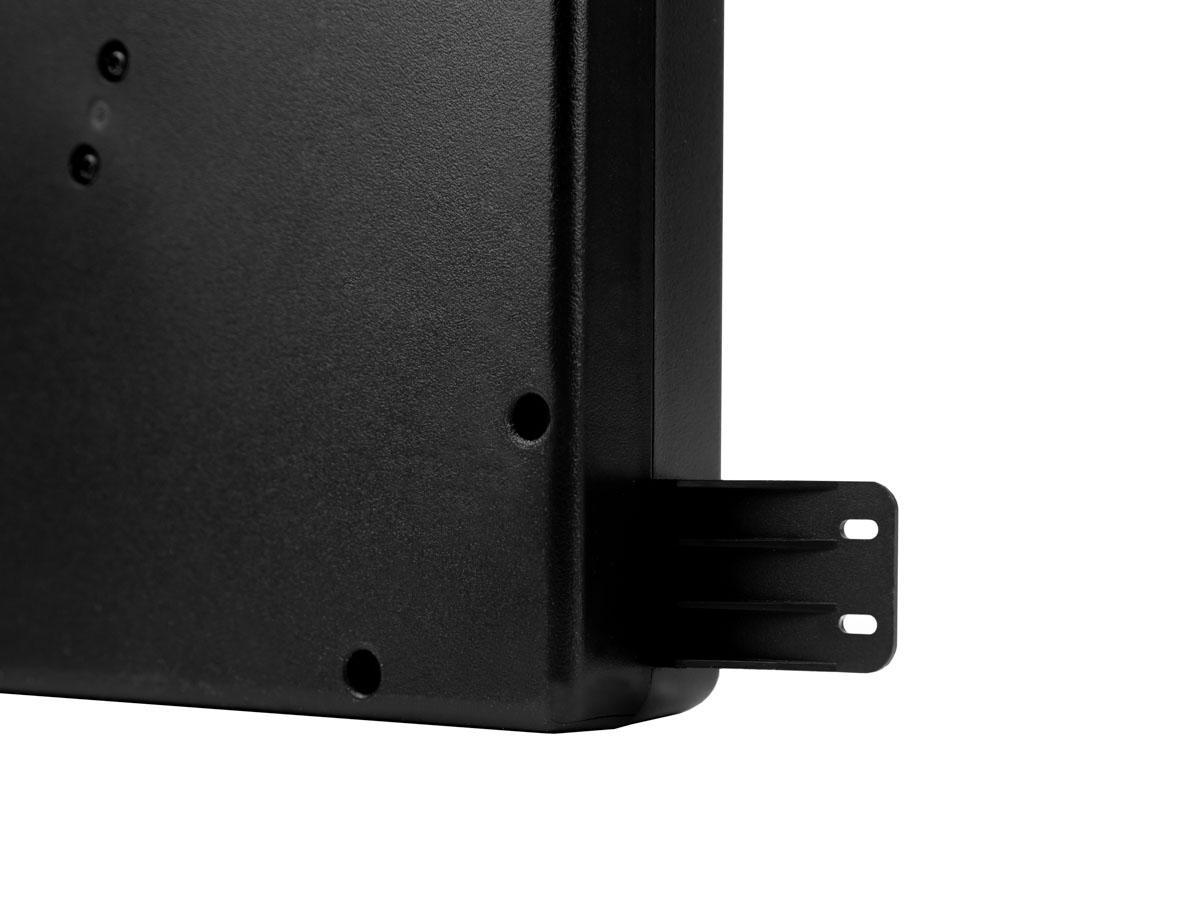

• Cable glands (917.032) are required for mounting to the connection panel

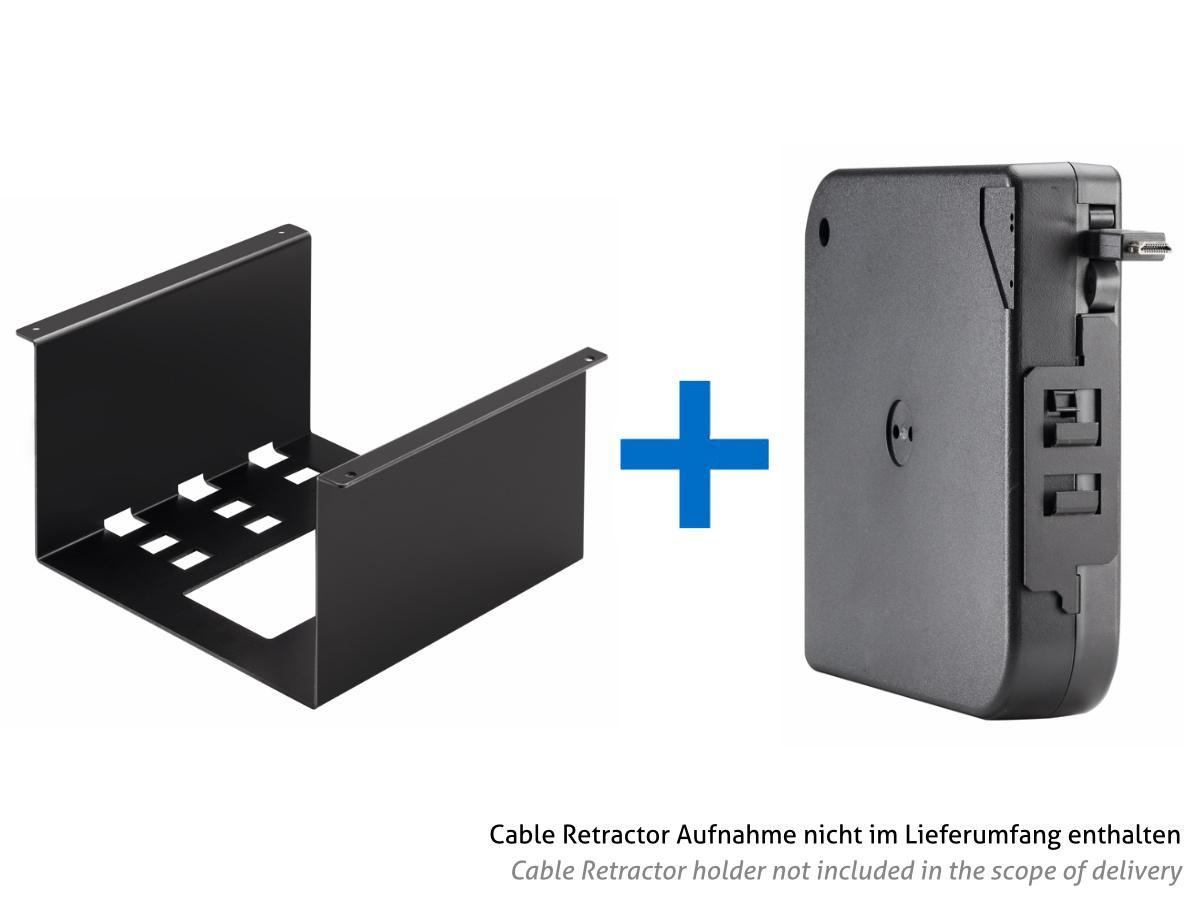

• CABLE RETRACTOR holder is not included
• Can only be used in combination with the following CABLE RETRACTOR recording:
  Bachmann CABLE RETRACTOR Cable extract holder for TOP FRAME + CONFERENCE (930.500)
  Bachmann CABLE RETRACTOR Cable extract holder for CONI COVER + POWER FARME (930.501)
  Bachmann CABLE RETRACTOR Cable extract holder for POWER FRAME (930.502)
  Bachmann CABLE RETRACTOR Cable extract holder for CONI (930.503)
