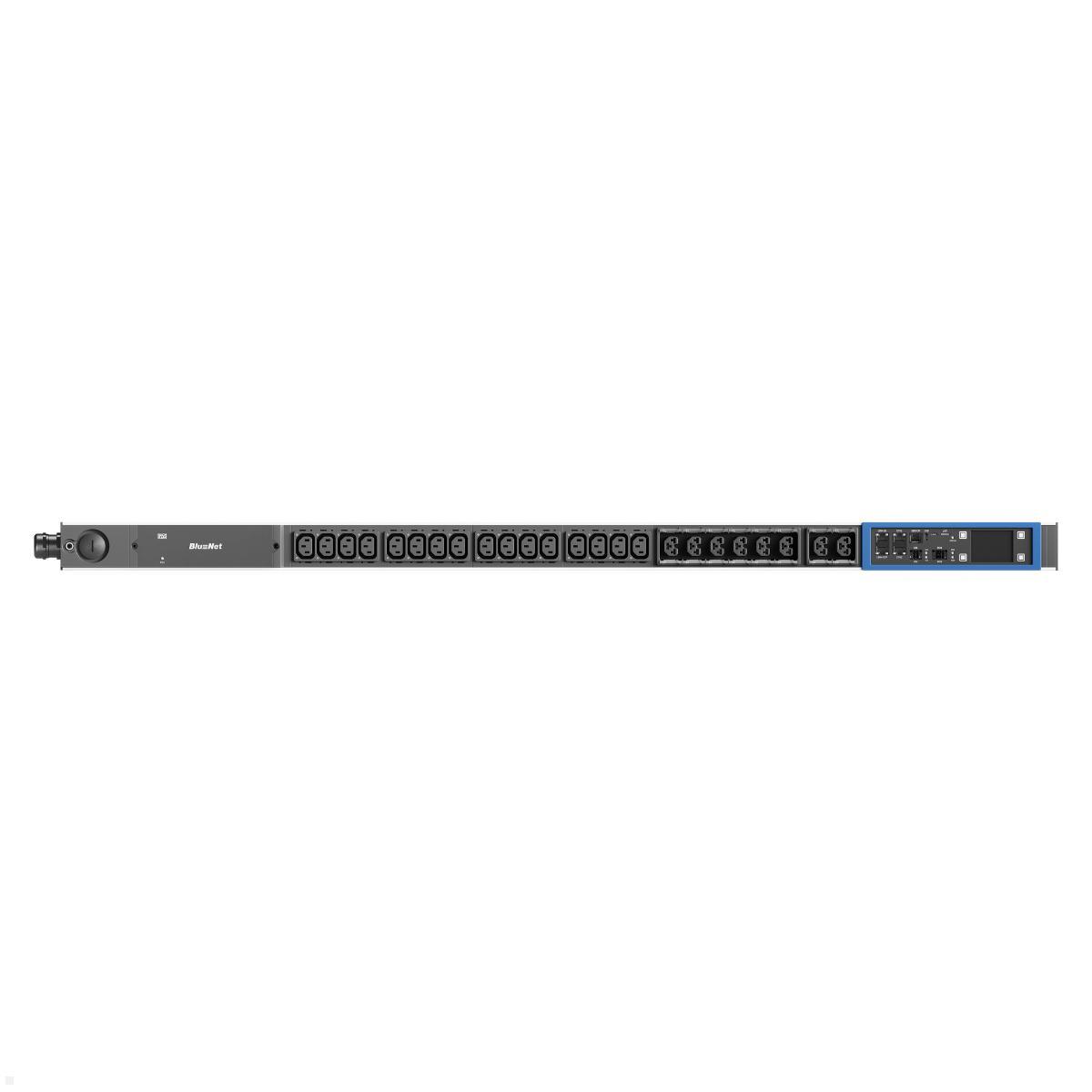

Bachmann BN PRO S Switched - 16A Rack PDU with 16xC13 8xCombo, 3,0m CEE 16A/3p (BM0024767)
Highlights
- 16xC13 + 8xCombo (C13/C15/C19/C21)
- Outlets individually switchable
- Measurement per phase, SNMP-capable

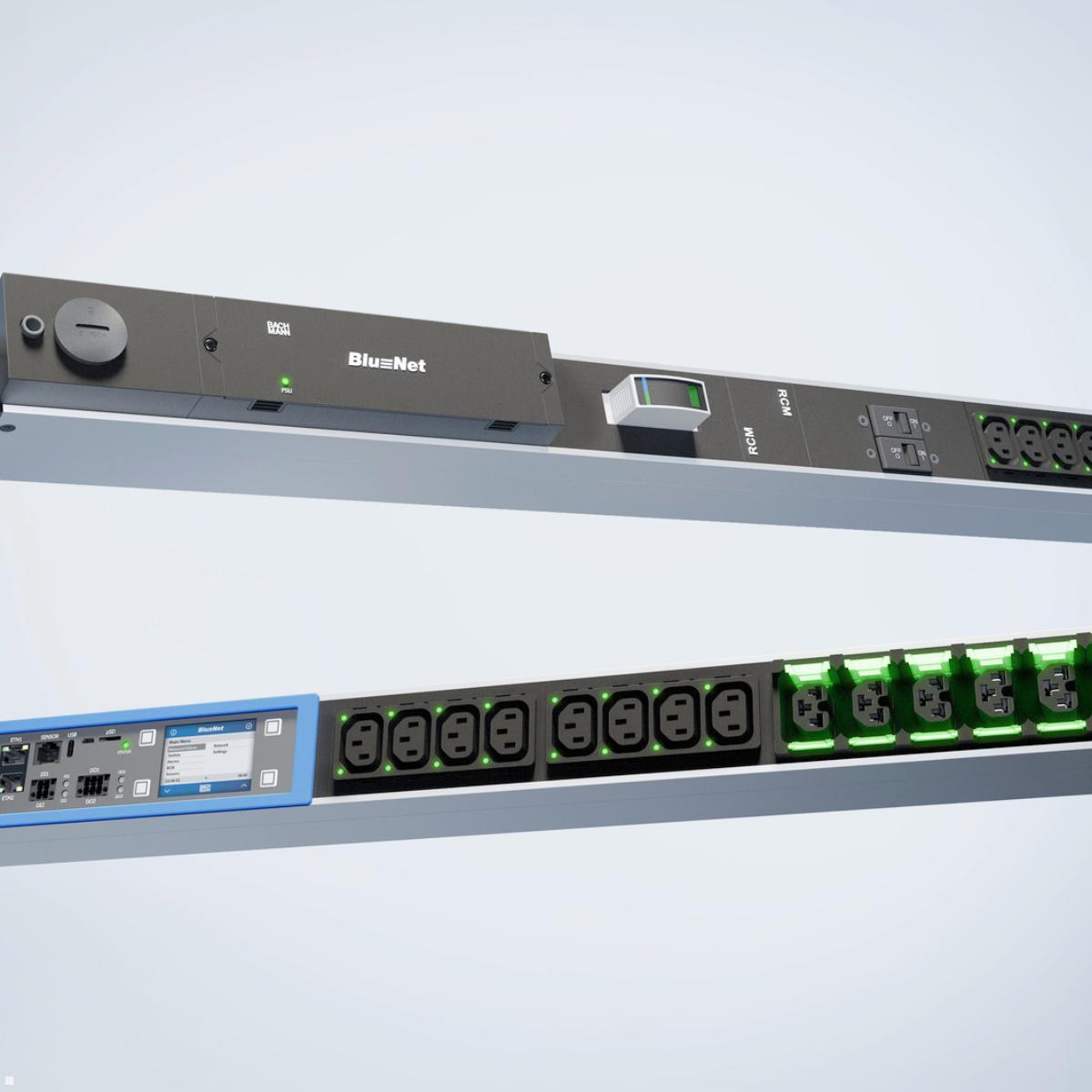

- Controller & power supply hot-swappable
- CEE 16A connector, 3.0 m cable
Switched Rack PDU with Phase Measurement and Switchable Outlets

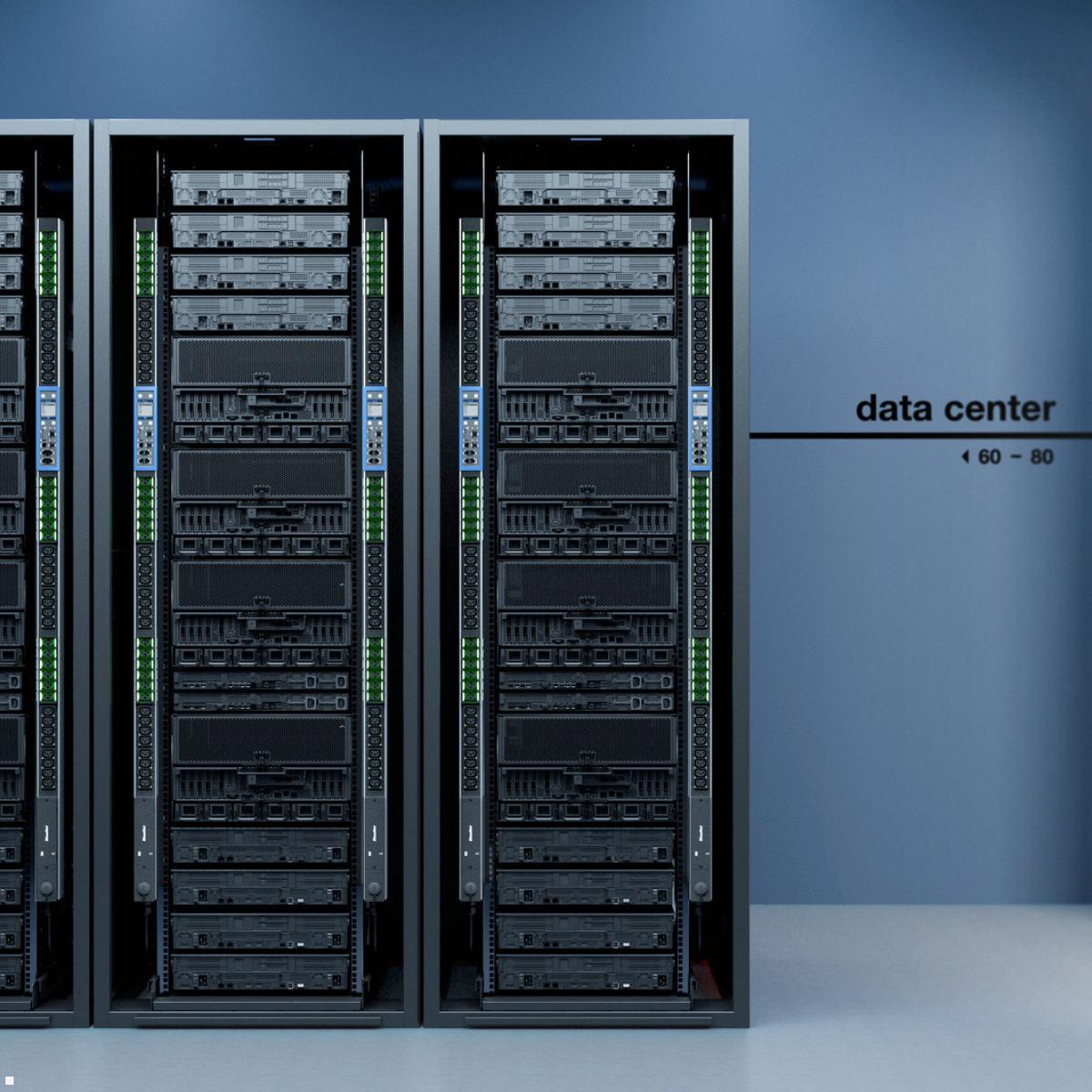

The Bachmann BN PRO S Switched (BM0024767) is a professional Power Distribution Unit for use in IT racks, server rooms and data centers. With an input of 16A/230V and 3.6 kW and a 3.0 m supply cable (2.5 mm²) with CEE 16A blue plug, it reliably powers connected devices in the rack. The 16x C13 IEC outlets and 8x combo outlets (C13/C15/C19/C21) offer maximum flexibility for different device configurations. Each outlet is individually switchable, allowing devices to be powered on, rebooted or turned off remotely — ideal for remote racks and edge installations. The integrated measurement function records per-phase current, voltage, reactive, apparent and active power, reactive, apparent and active energy, frequency and power factor. Upgradable at any time to per-outlet measurement via license.

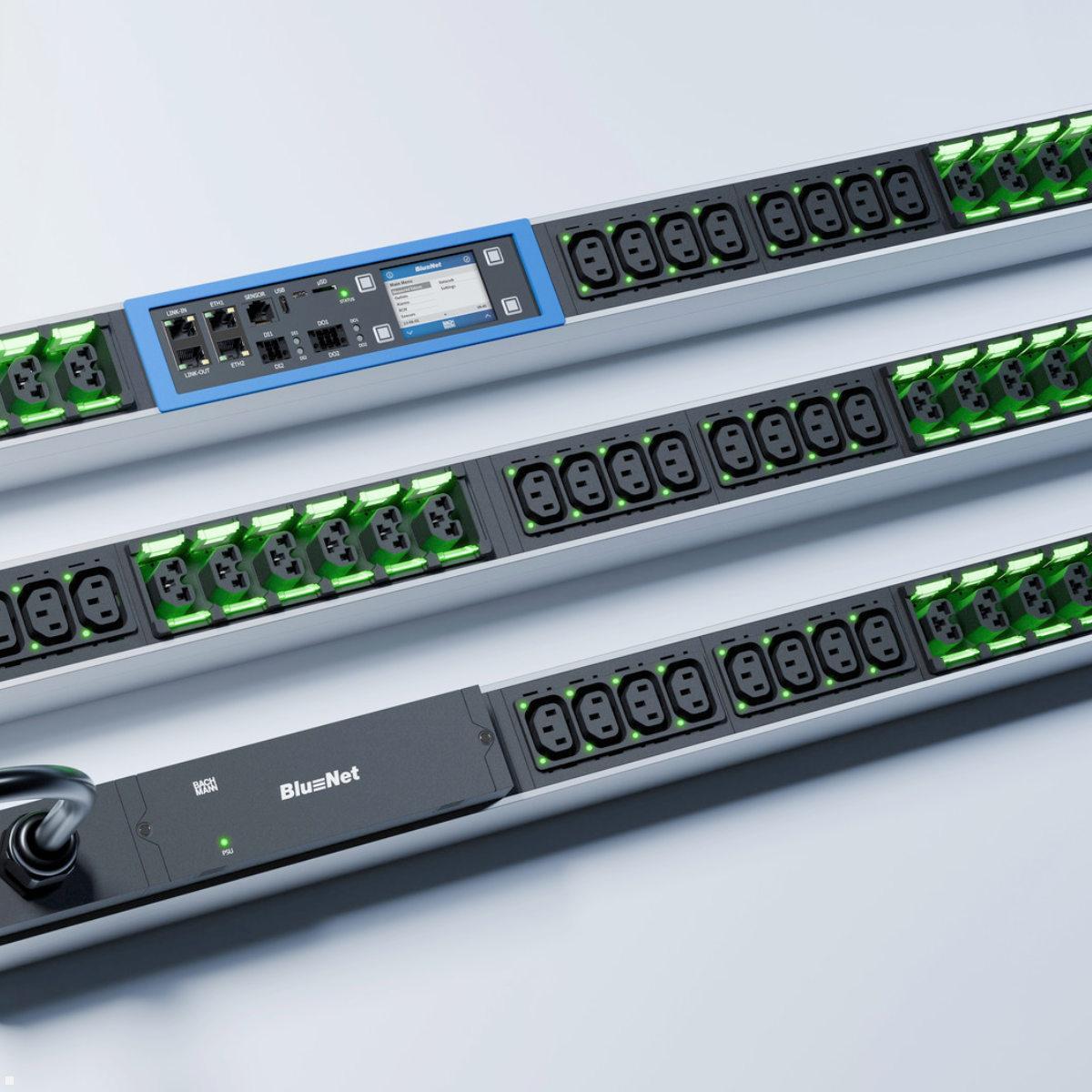

The Bachmann BN PRO S Switched - 16A Rack PDU with 16x C13 8x Combo, 3.0m CEE 16A/3p (BM0024767) impresses with maximum fault tolerance: controller and power supply are hot-swappable, allowing maintenance to be performed without interruption. The integrated web server with web interface and SNMP support enable seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and managed centrally via the PDU cascade interface. The 2.4" TFT color display shows important operating data directly on the device. An RJ45 sensor port allows connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0), the PDU is well connected — the frame for color coding (blue/red) and the included mounting bracket (L-shaped) complete the package.
Technical Details – Bachmann BN PRO S Switched Rack PDU BM0024767
- Input: 16A / 230V / 3.6 kW
- Supply cable: 3.0 m | 2.5 mm² | CEE 16A blue plug
- Phases: single-phase

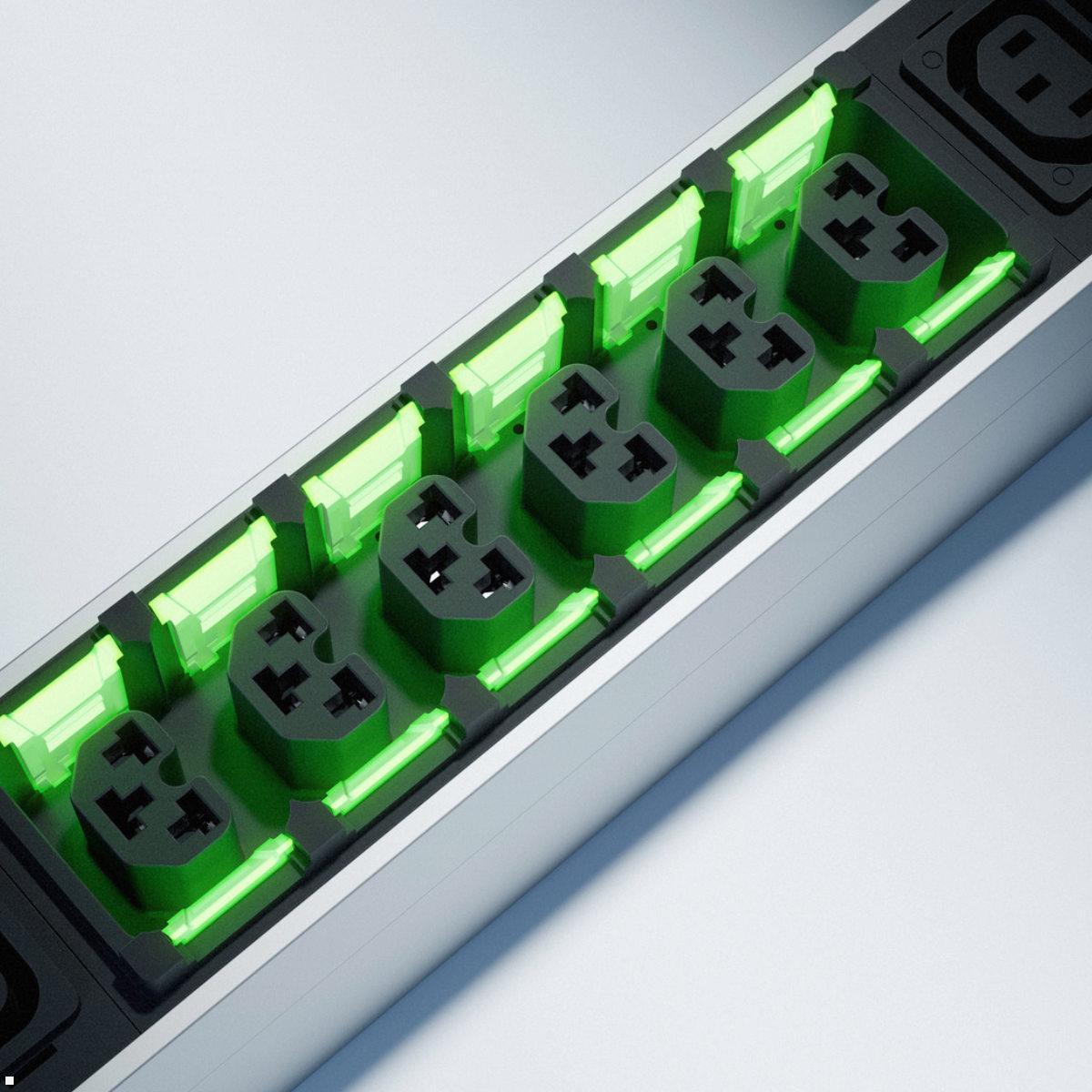

- Output: 16x C13 IEC outlets, 8x combo (C13/C15/C19/C21)
- Outlets individually switchable
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradable at any time to per-outlet measurement via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU cascade: up to 20 PDUs cascaded
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- EMI filter: No
- Fuse: No
- Temperature measurement: Yes
- Mounting orientation: vertical
- Enclosure: aluminum
- Frame for color coding (blue/red)
- Includes mounting bracket (L-shaped, single)
- Dimensions (L×W×D): 1157 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

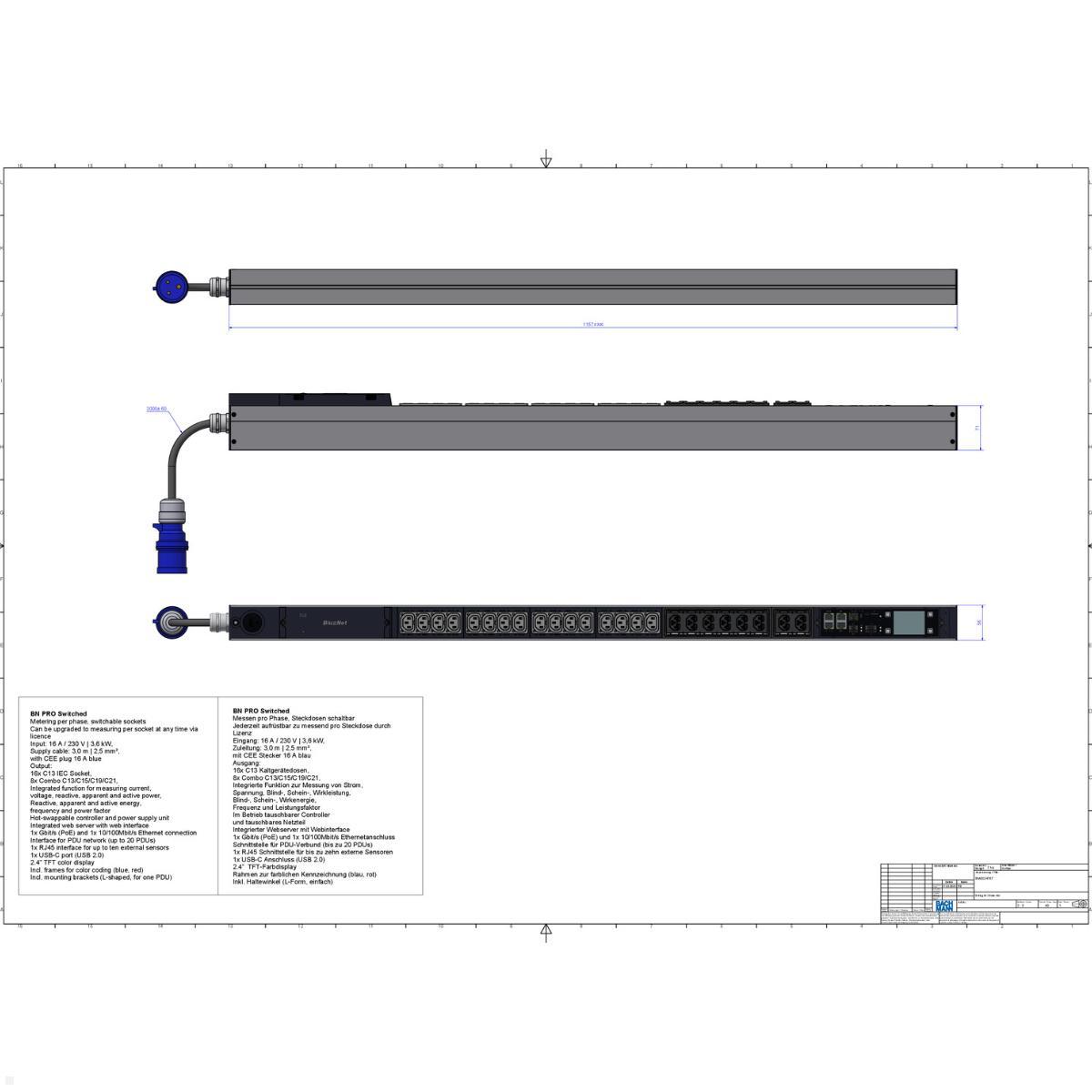

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | No |
| Größe PDU: | Vertikal, 40 HE |
| Größe vertikale PDU: | 40 HE |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the BN PRO S Switched Rack PDU BM0024767?
It is a professional Power Distribution Unit for IT racks, server rooms and data centres. It has an input of 16A/230V (3.6 kW) and a 3.0 m lead with a blue 16A CEE plug.
-
What outlets does it have?
It features 16x C13 outlets and 8x Combo outlets (C13/C15/C19/C21).
-
Are outlets individually switchable?
Yes, each outlet is individually switchable.
-
What measurement capabilities does it have?
It provides phase-by-phase measurement of current, voltage, reactive, apparent and real power, as well as reactive, apparent and real energy, frequency and power factor. Per-outlet measurement can be added later via a license.
-
How can it be managed and connected?
It includes an integrated web server with a web interface and SNMP support; up to 20 PDUs can be cascaded and centrally managed.
-
What network connections and ports does it provide?
It has 1x 1 Gbps Ethernet (PoE) and 1x 10/100 Mbps Ethernet; 1x USB-C (USB 2.0) and 1x RJ45 sensor port. The frame is color-coded blue/red and a matching L-shaped mounting bracket is included.
-
Can the controller and power supply be swapped while operating?
Yes, the controller and power supply are swappable during operation.
